Anti Cut 3D Mesh Security Fencing Reinforced Ribbed Mesh Structure
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-03 |
| Minimum Order Quantity | 50 sets |
| Price | $3.5-9.8/㎡ |
| Packaging Details | steel pallet |
| Delivery Time | according to quantity |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs / 7 days |
Product Details
| Material: | Low-carbon High-tensile Steel Wire | Wire Diameter: | Standard 4.0 Mm (options: 3.5 / 4.5 / 5.0 / 6.0 Mm)) |
|---|---|---|---|
| Panel Size: | Width 2500 Mm (also 2000 / 3000 Mm);heights Customizable | Mesh Aperture: | 50×100 / 50×150 / 50×200 Mm (select Per Security/visibility Needs) |
| Security Features: | High Weld Density, Rib Reinforcement, Optional Anti-cut Rating And Tamper-resistant Fixings | Sensor Ready: | Reinforced Mount Points For Vibration, Fiber Or Camera Sensors |
| Samples: | Samples 7–12 Days For Free | Packing & Delivery: | Palletized Flat Packing + Wooden Braces + Rust-proof Wrap |
| Highlight: | mesh security fencing reinforced,reinforced metal security fencing,anti cut mesh security fencing |
||
Product Description
Anti-Cut 3D Security Fence Panel Reinforced Ribbed Mesh Structure
Product Information

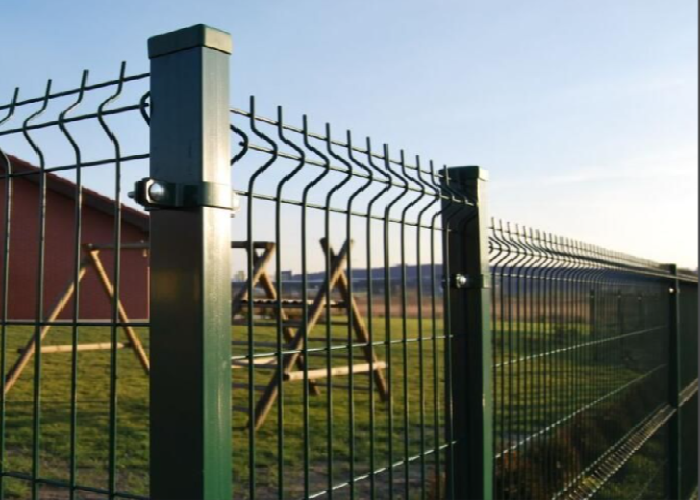

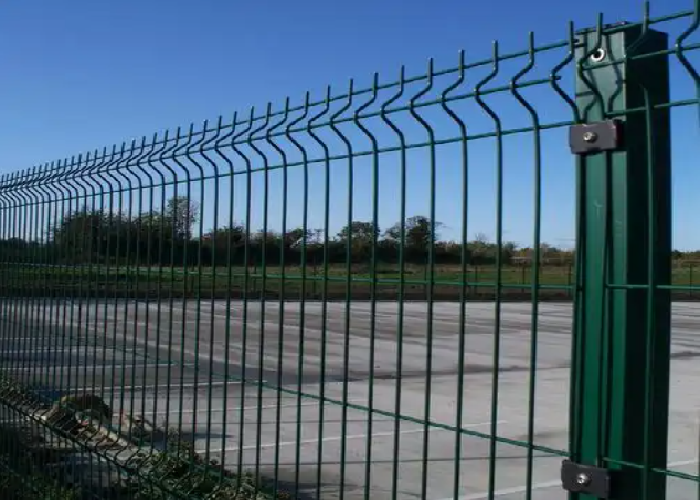

The Anti-Cut 3D Security Fence Panel is a welded-mesh perimeter solution that combines pressed 3D ribs with a dense welded mesh core to provide physical delay, low-sag performance and clear sightlines for CCTV. The three-dimensional rib profile increases section stiffness so panels keep flat over longer spans while resisting local deformation and blunt impacts. Standard widths are around 2.5 m and heights are customizable to suit site needs.
Characteristics
Panels are manufactured with controlled weld density and fuse-welded intersections to improve shear resistance. Typical wire gauges start at 4.0 mm; higher gauges and closer weld spacing raise the panel’s resistance to cutting tools and pry attempts. The ribbed geometry (2–4 ribs, V or curved profile) distributes loads along the panel rather than concentrating stress at a single point, reducing long-term sagging and maintenance.
Advantages
This design balances deterrence and surveillance: tight mesh options and tamper-resistant fixings increase physical delay, while the open welded mesh retains good visibility for cameras and guards. Pre-drilled, reinforced sensor mount zones let integrators attach vibration detectors, fiber sensing or camera brackets without weakening the panel. Duplex finish options (HDG + powder) extend service life in corrosive environments and reduce upkeep.
Technical Data Table
| Attribute | Typical Value |
|---|---|
| Panel Width | 2500 mm (2000 / 3000 mm optional) |
| Panel Height | 1.0 / 1.2 / 1.8 / 2.4 / 3.0 m |
| Mesh Aperture | 50×100 / 50×150 / 50×200 mm |
| Wire Gauge | 4.0 mm standard (3.5–6.0 mm optional) |
| Rib Count & Form | 2–4 ribs, V or curved profile |
| Finish | Hot-dip galvanize + polyester powder (PVC / stainless optional) |
| Mounting | Bolt/clamp to modular posts; flange or in-ground bases |
| Sample Lead Time | 7–12 days |
Applications
Well suited for utility substations, transport hubs, industrial compounds, campus perimeters and secure logistics yards. Choose heavier wire and denser mesh for critical infrastructure; choose lighter gauges and fewer ribs for landscape boundaries where visual integration matters.
Installation & Maintenance
Panels bolt to modular posts using clamps or anti-tamper brackets; flange or in-ground post foundations are supported. The 3D ribs simplify lifting and stacking during transport. Routine maintenance: periodic inspection of clamps and coatings, touch-up of exposed metal, and replacement of any damaged panel — modular replacement keeps downtime minimal.
