3D Profile Security Fencing Panels Reinforced Mesh With Modular Mounting System

3D Profile Security Fence Panel Reinforced Mesh with Modular Mounting System

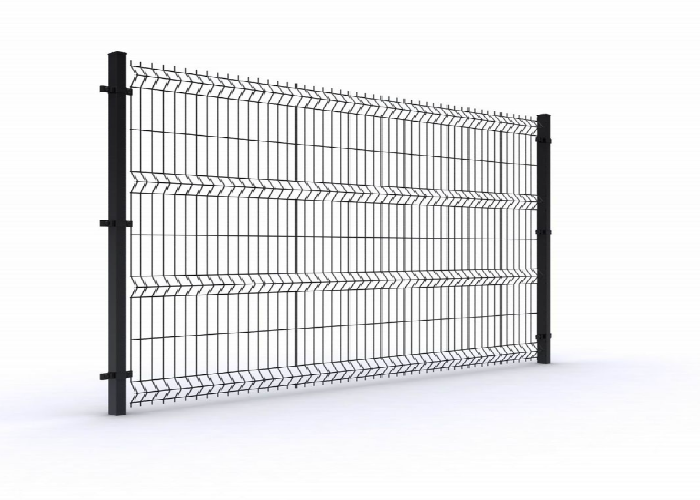

3d Security Fence-Product Overview:The 3D Profile Security Fence Panel is a welded mesh security solution with integrated corrugated ribs, designed for enhanced structural rigidity and perimeter protection. The 3D bending profile increases resistance to bending and impacts, giving longer spans without sagging and improving overall durability. Standard panel width is about 2.5 m, while heights are customizable to meet project requirements ranging from 1.2 m up to 3.0 m or more. Mesh aperture and wire gauge can be tailored to balance visibility, ventilation, and security needs.

Structure & Rigidity
Each panel includes 2 to 4 pressed V‑ or U‑shaped ribs that act as built‑in stiffeners. This 3D profile distributes stress evenly over the panel and ensures that large panels remain flat under load or impact. Welded mesh at the core retains transparency and allows for surveillance lines of sight—key for CCTV monitoring and lighting. With adjustable rib count and mesh configuration, panels can be optimized for light‑duty site fencing or heavy‑duty security perimeters.

Installation & Modular Mounting

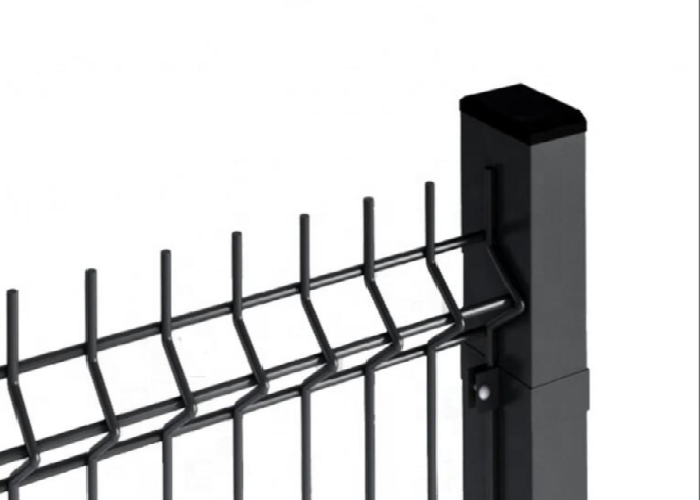

The system uses modular posts with bolt or clamp‑on mounting, allowing for rapid installation or removal without welding. This modularity makes it suitable for permanent installations as well as temporary or phased constructions. Accessories like post caps, gate frames, or anti‑climb toppers can be integrated without compromising structural integrity. The shipping package includes palletized panels, wooden braces and rustproof wrapping, with accessories boxed separately for safe transport and easy site handling.

Applications & Flexibility
3D security fence panels are suitable for residential perimeters, commercial complexes, industrial sites, schools, public facilities, and utilities where both visibility and security are required. For projects requiring higher deterrence, denser mesh, heavier wire gauge, and additional anti‑climb accessories can be selected. For landscaped areas or where visibility and aesthetics matter, lighter mesh and fewer ribs offer a neat architectural look while maintaining basic security.

Durability & Maintenance
With hot‑dip galvanizing and powder coating (or optional PVC/stainless finish), the fence offers good corrosion resistance for outdoor exposure. Annual inspection of fixings and coatings is recommended; damaged panels can be replaced individually due to modular design. The 3D rib structure also reduces long‑term sagging or deformation compared with flat‑mesh fences, lowering overall maintenance costs.

Parameter table:
