Curved Rib 3D Security Fence For Impact Resistance And Low Glare Visibility
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-03 |
| Minimum Order Quantity | 50 sets |
| Price | $3.5-9.8/㎡ |
| Packaging Details | steel pallet |
| Delivery Time | according to quantity |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs / 7 days |
Product Details
| Material: | Low-carbon Welded Steel Mesh With Ribbed Frame (options: Hot-dip Galvanize, Powder Coat, PVC) | Panel Size: | Width 2500–2520 Mm; Heights Customizable (typical 1.0 / 1.2 / 1.8 / 2.4 / 3.0 M) |
|---|---|---|---|
| Wire Gauge: | Standard 4.0 Mm; Optional 3.5–6.0 Mm | Mesh Aperture: | 50×100, 50×150, 50×200 Mm (selectable) |
| Rib Form: | Curved V Or Shallow U Ribs, 2–4 Ribs Per Panel To Control Deflection | Finish: | Hot-dip Galvanize Plus Polyester Powder Coat By Default; PVC Or Stainless Option Available |
| Mounting: | Bolt-on Clamp System With Modular Posts; Post Sleeves And Flange Bases Available | Packing & Delivery: | Palletized Flat Packing, Wooden Bracing, Labeled Accessory Boxes; Supports Staged Delivery |
| Highlight: | curved rib 3d security fence,visibility 3d security fence,visibility security fence panels |
||
Product Description
Curved Rib 3D Security Fence for Impact Resistance and Low-Glare Visibility

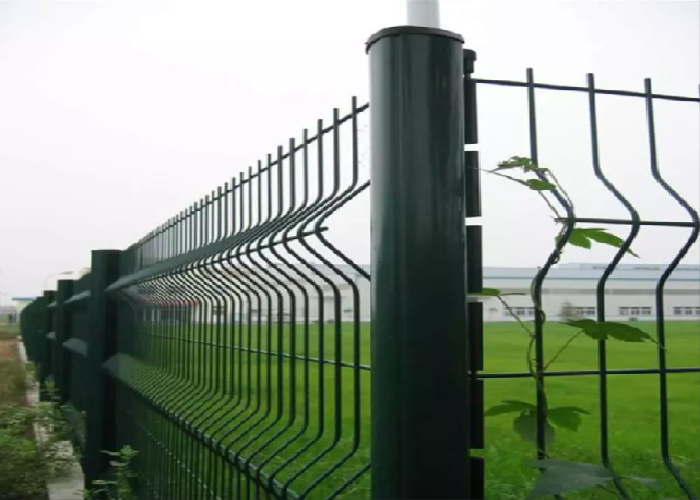

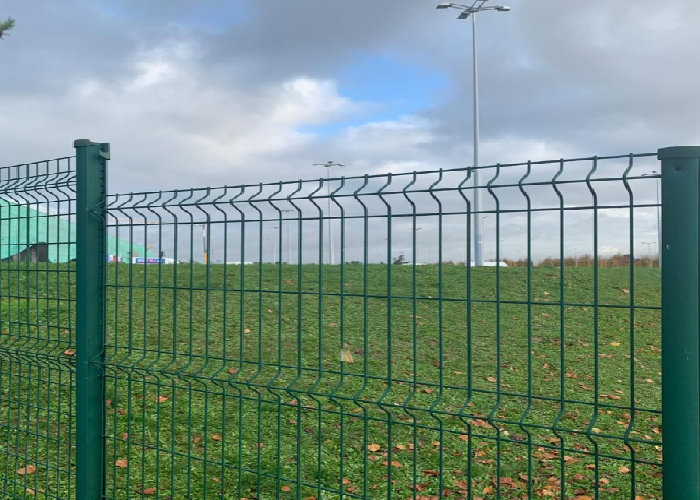

The Curved-Rib 3D Security Fence Panel blends a pressed three-dimensional rib profile with welded mesh to deliver a fence that resists bending, absorbs impact energy and reduces visual glare from low-angle lighting. Curved ribs add stiffness while producing smoother sightlines compared with sharp V ribs, making this panel ideal where both deterrence and controlled visibility matter. Standard panel widths are approximately 2.5 meters and heights are configurable to project needs.
Design Benefits & Performance
The 3D curvature increases section modulus without adding equivalent material mass, so panels span longer distances between posts with less sag. Curved ribs also break straight reflections, helping CCTV and on-site lighting avoid concentrated glare. For site with occasional impacts — vehicle approaches or maintenance equipment — ribs help distribute forces to neighboring mesh instead of allowing local failure. Wire gauge, rib count and weld density are specified to match the chosen risk profile.
| Attribute | Typical Value |
|---|---|
| Panel Width | 2500–2520 mm |
| Panel Height | 1.0 / 1.2 / 1.8 / 2.4 / 3.0 m (customizable) |
| Mesh Aperture | 50×100 / 50×150 / 50×200 mm |
| Wire Gauge | 4.0 mm (std) — 3.5–6.0 mm optional |
| Rib Count | 2–4 curved ribs per panel |
| Finish | HDG + polyester powder coat (PVC / stainless optional) |
| Mounting | Bolt/clamp modular posts; flange or sleeve bases |
| Max Span (typical) | Up to 2.5–3.0 m between posts (engineer verify) |
Installation & Maintenance
Panels fix to posts with bolt-on clamps; modular posts accept flange anchor plates or buried sleeves. The curved ribs simplify handling and stacking for shipping. Routine maintenance: check fixings annually, touch up exposed metal, replace any locally damaged panels — modular replacement minimizes downtime.
Applications & Options
Recommended for commercial perimeters, transport hubs, landscaped boundaries where glare control matters, and sites needing improved impact tolerance (e.g., service yards). Optional accessories include anti-climb toppers, sensor mounting brackets, and tamper-resistant fasteners.
