High Tensile Anti Cut Security Fence 3D Panel With Sensor Mounts

Anti-Cut Reinforced Mesh 3D Security Fence Panel with Sensor Mounts

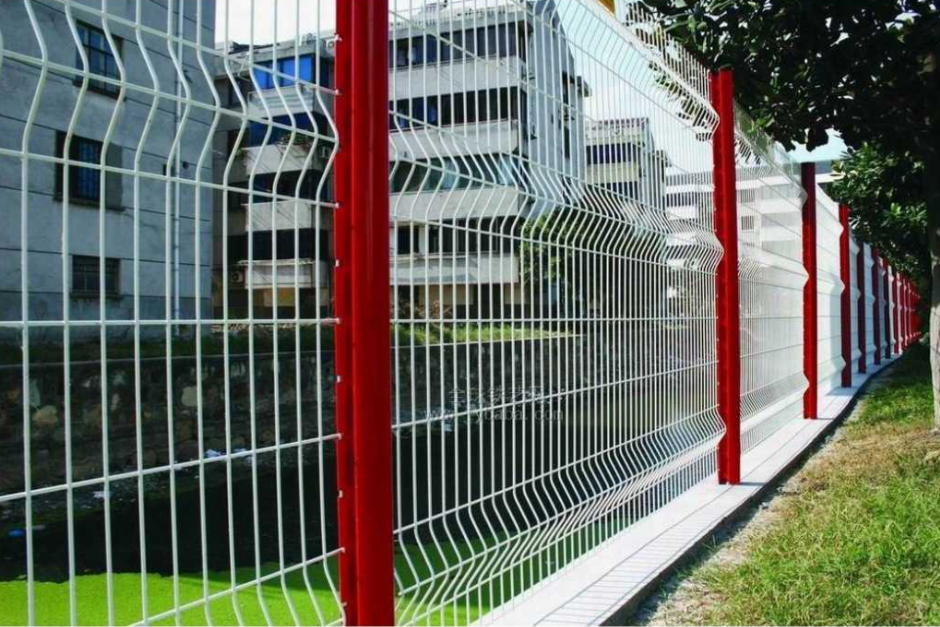

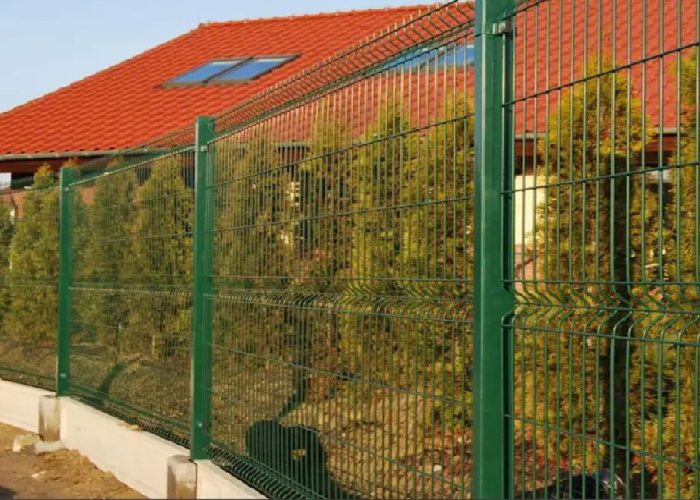

3d Security Fence-Product Overview:The 3D Security Fence Panel combines pressed rib stiffening with a welded mesh core to deliver a perimeter barrier that resists bending, impact and localized cutting attempts. Unlike flat mesh systems, the three-dimensional rib profile increases moment of inertia without adding excessive steel mass, enabling wider unsupported spans and cleaner sightlines for CCTV. Panels are supplied in modular widths around 2500 mm and configurable heights; wire gauge, rib count and weld density are selected based on the site’s threat and environmental profile.

Anti-Cut & Sensor Integration
This variant is engineered for sites that require both physical delay and rapid detection. Higher weld density and thicker horizontal wires restrict cutting tool access; where clients require, we specify anti-cut ratings tied to wire profile and weld pattern. The panels incorporate reinforced mounting points and pre-drilled zones for mounting vibration sensors, cable routes for fiber sensing, or discrete CCTV bracketry—allowing perimeter detection systems to be integrated without weakening the panel structure.

Environmental Performance & Reuse
Construction uses recyclable steel and corrosion-resistant coatings selected for the installation environment. Components are designed for disassembly—panels, fasteners and posts can be separated for end-of-life recycling. Typical surface systems are hot-dip galvanize plus polyester powder, with optional duplex or stainless finishes for aggressive coastal exposures. The 3D rib geometry reduces long-term sag, lowering maintenance frequency and supporting longer service intervals.

Site Flexibility & Installation
The system supports modular posts and adjustable clamps that accept slope corrections up to ±15° and permit on-site vertical tolerance without cutting panels. Tamper-resistant fasteners and sealed clamps are available to reduce unauthorized removal. Shipping uses palletized flat packs with labeled accessory boxes to speed field assembly; modular mounting means panels can be fitted to concrete sockets, baseplates or temporary footings.

Applications
Best suited to infrastructure perimeters, substations, transport hubs and campuses where fast detection and physical delay are both required. Choose denser mesh and higher-gauge wires for critical sites; choose fewer ribs and finer mesh for architectural projects that prioritize sightlines and lower visual impact.

Parameter table:
