Coastal Grade 3D V Fold Security Fence Panels Heavy Galvanized Finish

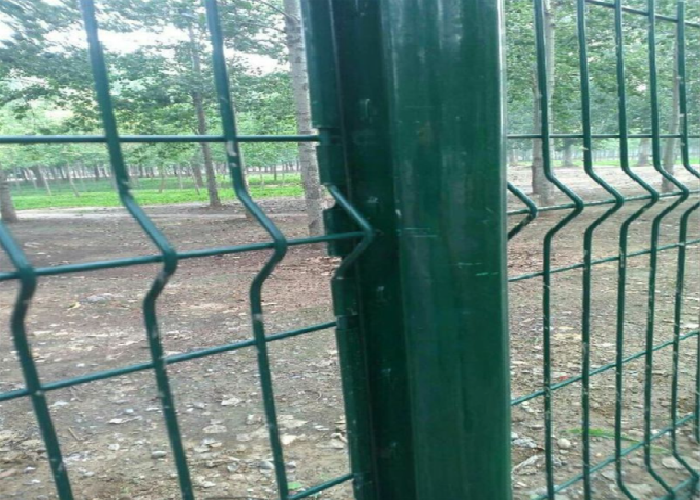

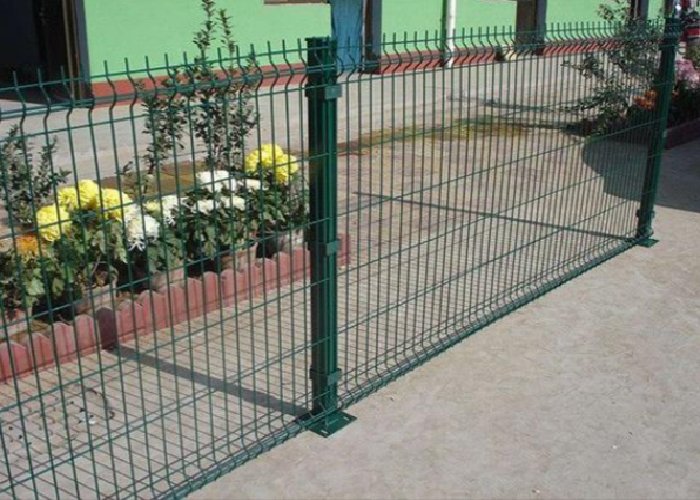

Coastal-Grade 3D V-Fold Security Fence Panel — Heavy Galvanized Finish

3d Security Fence-Product Information:

The Coastal-Grade 3D V-Fold panel is engineered specifically for corrosive environments where salt spray, humidity and airborne chlorides accelerate asset degradation. The core idea is geometric efficiency: pressed V-ribs across the panel create triangular stiffening sections that markedly increase bending stiffness per unit mass. By combining thicker hot-dip galvanizing (typically specified above industry baseline) with a polyester powder topcoat — or PVC where required — the system extends service intervals and reduces lifecycle material turnover, delivering lower total cost of ownership for coastal projects.

Technology & Materials:

Panels start from welded wire mesh sized for anti-climb performance (50×100 to 50×200 mm options), with wire gauges chosen for the project’s tolerance to cutting and prying. The V-fold manufacturing stage is integrated into the production line to preserve weld integrity at intersections. Crucial to coastal performance is the zinc mass (g/m²) specification and powder coat film thickness; for aggressive sites, specify increased Zn mass and thicker powder layers, plus stainless components for anchors and fasteners to avoid galvanic reactions.

Advantages for Coastal Sites:

Three principal benefits stand out: enhanced corrosion resistance via heavy galvanizing and coatings; structural efficiency from V-ribs that avoids large framed rails; and logistics savings from panel nesting and palletized packaging. The reduced need for replacement parts makes maintenance scheduling more predictable in remote or marine installations.

Logistics & Packaging Strategy:

This product is optimized for containerized shipping. Panels are stackable and, where feasible, designed to nest slightly to improve container utilization. Palletized bundles with wooden braces and anti-rust wrapping protect coated surfaces; accessories (clamps, bolts, post caps) are boxed separately and labeled by lot for staged delivery aligned with construction phases.

Installation & Maintenance:
Install by bolting or clamping panels to specified posts; use stainless anchors on coastal sites. Annual inspections of coatings and fixings are recommended, with immediate touch-ups to any exposed metal. For severe marine exposures, schedule more frequent inspections; a proactive maintenance contract will maximize service life.

Parameter table:
