Reinforced Steel 3D Security Fence Panel Clear View Powder Coated

Reinforced 3D Security Fence Panel Clear-View Powder-Coated

3d Security Fence-Product Information:

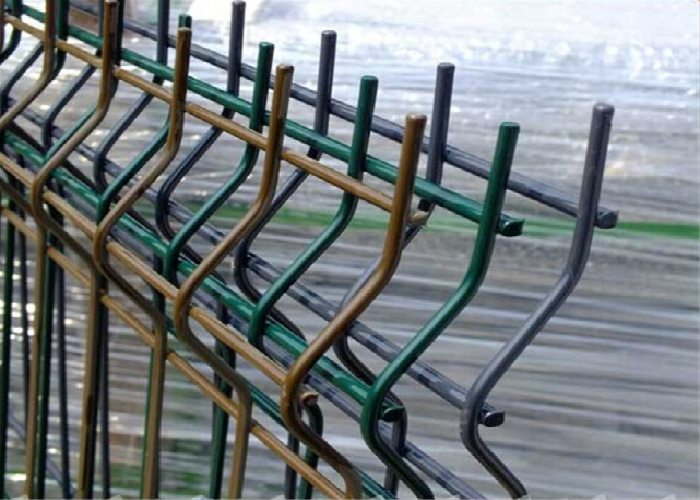

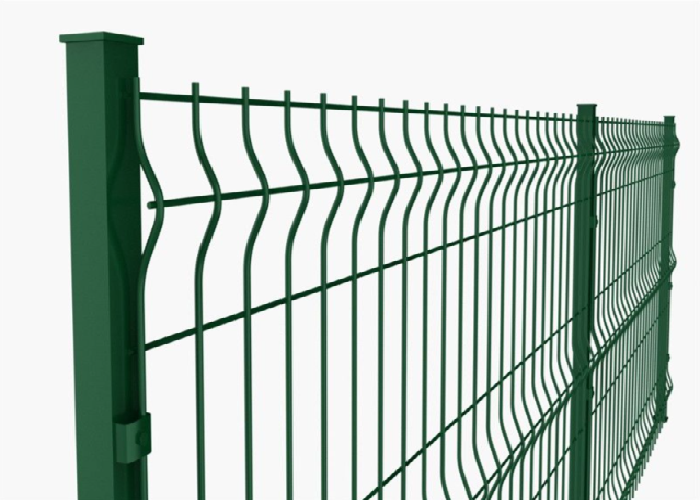

The 3D security fence panel is a welded wire mesh panel pressed with multiple V-shaped ribs across its face to produce a three-dimensional structural profile. These ribs act as integrated stiffeners, increasing bending resistance and impact tolerance per unit weight relative to flat panels. Typical panel width is approx. 2,500–2,520 mm; heights are customizable for applications ranging from low landscape barriers to >3 m perimeter protection. Mesh openings commonly include 50×100, 50×150 and 50×200 mm, selectable to match CCTV sightlines and anti-climb needs.

Characteristics:

The V-fold ribs provide built-in reinforcement that minimizes sag and local deformation while preserving a slim “clear-view” appearance favorable to surveillance. Panels are fully welded at intersections to ensure mechanical integrity. Standard finishes include hot-dip galvanizing followed by polyester powder coating, or optional PVC coating for special requirements; coating selection balances aesthetics, corrosion resistance and project budget.

Advantages:

Compared with equivalent flat mesh panels, 3D panels offer a higher stiffness-to-weight ratio, reduce the need for intermediate rails, and lower the overall framing mass. The modular system supports rapid on-site installation and easy panel replacement, minimizing downtime. Panels integrate readily with top-mounted deterrents (razor tape, spikes) and detection hardware for layered perimeter security.

Application:

Suitable for residential perimeters, commercial and corporate campuses, industrial parks, logistics centers, sports venues and utility substations — essentially anywhere that demands a balance of visibility, architectural neatness and baseline physical deterrence. Coastal or chemically aggressive sites should be specified with thicker galvanizing or stainless components.

Installation & Maintenance:

Panels attach to standard posts with clamps, anti-vibration bolts or welded brackets. Foundations may be in-ground concrete footings or baseplate anchors depending on site geotechnical conditions. Factory pre-assembly of clamps accelerates field work. Routine maintenance: annual inspection of fastenings and coatings, prompt touch-up of any exposed metal and timely replacement of damaged panels. For coastal projects, specify heavier galvanizing or stainless fasteners.

Parameter table:
