V Fold Anti Climb Security Fence Panel Clear View Reinforced Mesh
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-03 |
| Minimum Order Quantity | 50 sets |
| Price | $3.5-9.8/㎡ |
| Packaging Details | steel pallet |
| Delivery Time | according to quantity |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs / 7 days |
Product Details
| Material: | Low-carbon Steel Wire (option: Hot-dip Galvanized / Stainless) | Wire Diameter: | 4.0 Mm (optional 3.0–6.0 Mm) |
|---|---|---|---|
| Mesh Opening: | 50×100 / 50×150 / 50×200 Mm (customizable) | Panel Width: | Width 2500–2520 Mm × Customizable Height (per Project) |
| V-Bends: | 2–4 V-fold Ribs (by Model/height) | Surface Finish: | Hot-dip Galvanized + Powder-coated (or PVC Coating Optional) |
| Post Type: | Square / Rectangular / Round Posts (various Specs Available) | Packing: | Pallet + Wooden Bracket + Anti-rust Lamination |
| Highlight: | v fold anti climb security fence,reinforced anti climb security fence,reinforced security fencing anti climb |
||
Product Description
Anti-Climb Security Fence Panel — Clear-View Reinforced Mesh
Product Information:

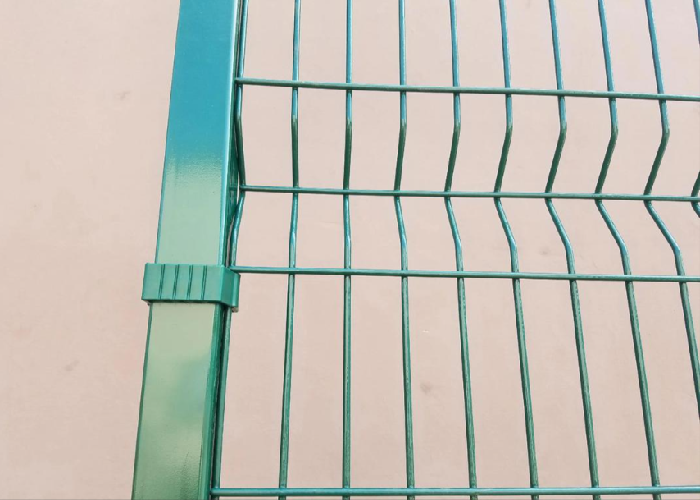

The security fence panel is a welded wire mesh sheet formed with 2–4 pressed V-ribs that create a three-dimensional profile. This design increases lateral stiffness and impact resistance while keeping a slim clear-view appearance. Panels are typically ~2.5 m wide and heights are customizable per project, with mesh and wire options selectable to meet visual and security requirements.
Characteristics:
V-fold ribs act as integrated stiffeners, minimizing sag and local deformation. Tight mesh openings and heavier wire gauges improve anti-climb and anti-tamper performance. The clear-view profile preserves CCTV sightlines and lighting. Standard finishing (galvanize + powder coat) provides outdoor corrosion protection.
Advantages:
Compared with flat panels, 3D curved panels deliver higher stiffness per unit weight, faster modular installation, and simpler on-site replacement of damaged panels. They integrate easily with top-mount deterrents (razor wire, spikes) and are cost-effective where both visibility and perimeter deterrence are required.
Application:
Suited for residential perimeters, commercial campuses, industrial parks, sports venues, utility substations and landscape boundaries. Where CCTV visibility is required, 3D panels provide minimal obstruction.
Installation & Maintenance:

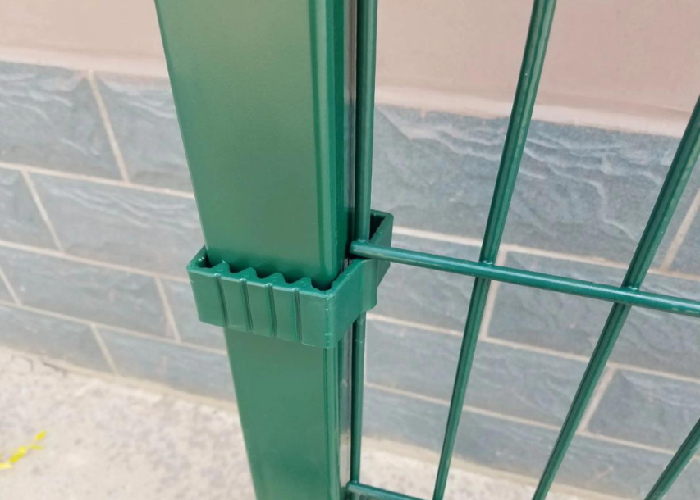

Panels bolt or clamp to standard posts; choose in-ground concrete footings or baseplate anchors per site. Inspect fixings and coatings annually and touch up exposed metal. For coastal projects consider thicker galvanizing or stainless components.
Quality Assurance & Delivery:
We perform incoming material checks, weld-strength sampling and coating-thickness inspections during production. Finished panels undergo dimensional, visual and adhesion tests before packing. Standard delivery is palletized with wooden braces and anti-rust wrapping; accessories are boxed separately. For large projects we support staged delivery and can provide factory inspection reports or third-party test certificates on request. Warranty and spare-parts packages can be included per contract.
Parameter table:
| Item | Typical |
|---|---|
| Panel Width | 2500–2520 mm |
| Mesh | 50×100 / 50×150 / 50×200 mm (optional) |
| Wire Diameter | 4.0 mm (standard; 3.0–6.0 mm optional) |
| V-Bends | 2–4 ribs per panel |
| Finish | Hot-dip galvanized + Powder-coated (or PVC) |
| Packing | Pallet + wooden braces + anti-rust wrap |
