Efficient Demister Mesh Pad Low Pressure Drop Enhanced Droplet Capture
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | Luo Jie |
| Certification | ISO 9001:2015 |
| Model Number | LJ-14 |
| Minimum Order Quantity | 10 PCS |
| Price | $29-86/set |
| Packaging Details | Wooden cases,Wooden Pallet,steel pallet |
| Delivery Time | 7-20days according to the quantity |
| Payment Terms | L/C,T/T |
| Supply Ability | 10000 ㎡ 7 days |
Product Details
| Performance Metric: | Pressure Drop ≤ 50 Pa Design Gas Velocity (typical) | Design Benefit: | Modular Multi-Layer Knit For Fast Removal And Easy Washing |
|---|---|---|---|
| Material Options: | SS304 / SS316L / PP / PTFE | Mesh Density: | 80–220 Kg/m³ Selectable For Different Mist Sizes |
| Typical Efficiency: | Removes Droplets ≥ 3 μm With Up To 99% Capture (system Dependent) | Shape & Fit: | Disc, Ring, Panel Or Tower-Specific Custom Shapes |
| Max Operating Temp: | Up To 500°C (material Dependent) | Application: | Distillation, Absorption, Scrubbers, Gas Treatment Units |
| Highlight: | pp demister mesh pad,gas demister mesh pad,pp wire mesh demister |
||
Product Description
Efficient Demister Pad Mesh Low Pressure Drop Enhanced Droplet Capture
Product Description:
Process Impact and Operational Benefits
Demister pads reduce liquid carryover and protect downstream equipment by efficiently capturing entrained droplets from gas streams. By lowering outlet droplet loading, they improve separation performance, reduce solvent loss in distillation and minimize fouling of heat exchangers and compressors. The low pressure-drop design helps maintain energy efficiency of gas handling systems and supports stable process control at varying flow rates.
Design, Materials and Performance Range:

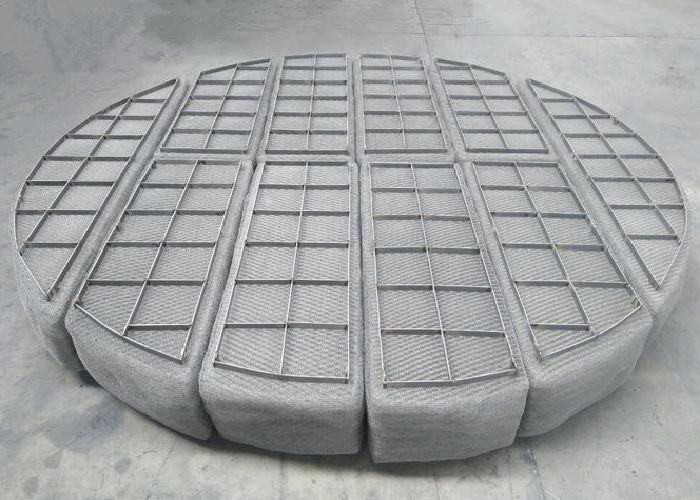

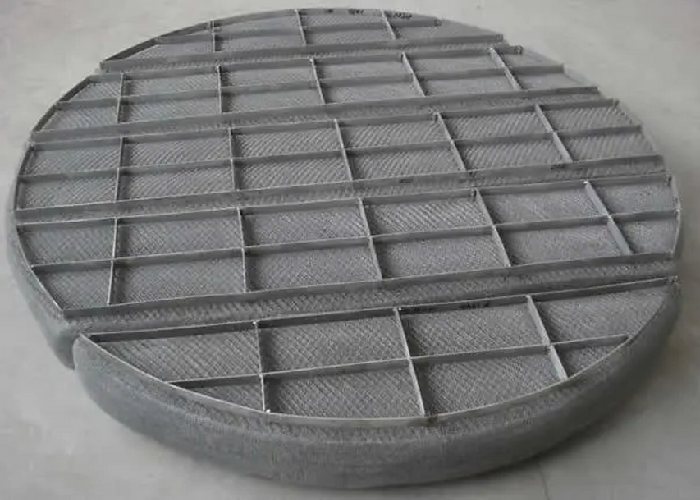

Our demister pads are produced by multi-layer knitted and interwoven wire or polymer filament assemblies. Stainless steel (SS304/SS316L) is recommended for high temperature and abrasive services; PP and PTFE versions are available for corrosive or acid environments. Mesh density and wire diameter are selected to match mist droplet size and gas velocity, offering a balance between capture efficiency and pressure drop.
| Item | Typical Range |
|---|---|
| Mesh Density | 80–220 kg/m³ |
| Wire Diameter / Filament | 0.12–0.35 mm |
| Capture Size | ≥ 3 μm |
| Pressure Drop | ≤ 50 Pa (typical at design point) |
| Materials | SS304 / SS316L / PP / PTFE |
Engineering Selection & Sizing Guidance:
Selecting the correct demister pad involves evaluating gas velocity, temperature, mist loading and allowable pressure drop. For retrofit projects we provide on-site sampling guidance and perform mist loading estimates. For new designs we deliver CAD layout, support ring selections and provide recommended pad stack heights for staged separation. Modular pad geometry simplifies inventory and speeds replacement during planned shutdowns.
Maintenance, Packaging & Delivery:
Pads are removable for offsite washing or onsite ultrasonic/chemical cleaning depending on material. We pack units in protective film and carton or wooden crate for export; small polymer pads are sealed in clean bags. Lead time typical: 7–20 days depending on material and custom sizing. Engineering datasheets, sample pads and performance test reports are available on request to support project approvals.
