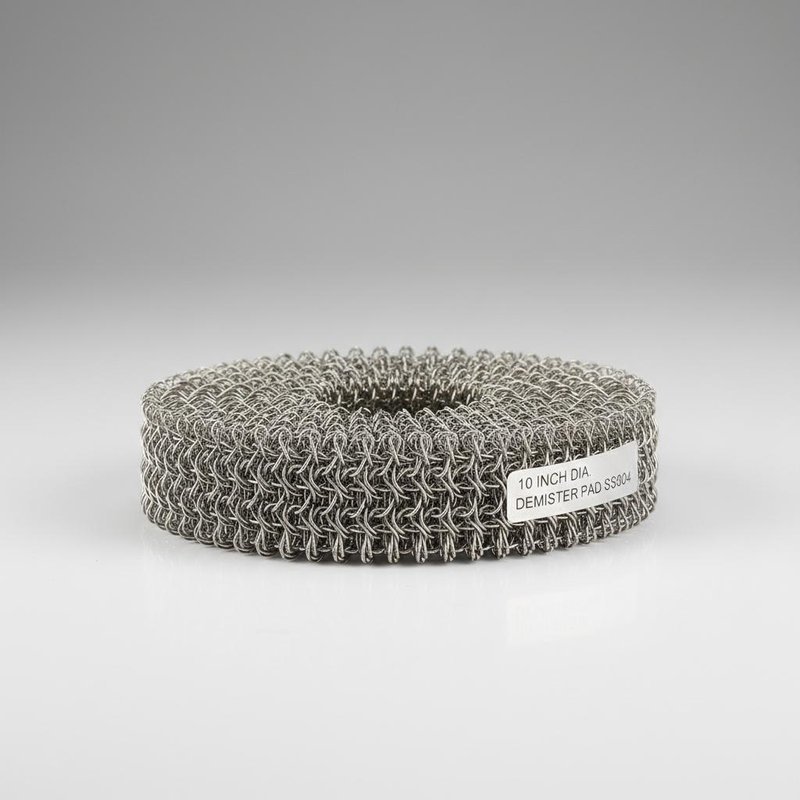

10 Inch Diameter Demister Pad SS 304 Material Smaller Model Custom
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-14 |
| Minimum Order Quantity | 50 Sets |
| Price | $8.5-10.9 per piece |
| Packaging Details | Wooden cases,Wooden Pallet,steel pallet |
| Delivery Time | 7-20days according to the quantity |
| Payment Terms | T/T |
| Supply Ability | 1000 sets per day |
Product Details
| Production: | Demister Pad | Key Words: | Wire Mesh Demister |
|---|---|---|---|
| Material: | Metal | Usage: | Liquid Filter |
| Hole Shape: | Round | Filter Rating: | 99% |
| Width: | Customized | Length: | Customize Length |
| Thickness: | 100mm | Application: | Kinds Filtration Industry |
| Shape: | Round | Color: | Silver |
| Feature: | Corrosion Resistance | Wire Diameter: | 0.20 Mm-0.25mm |
| Technique: | Knitting | Diameter: | DN300-6400mm |
| Highlight: | 10 inch stainless steel demister pad,SS 304 demister pad smaller model,custom diameter demister pad |
||
Product Description
10 Inch Diameter Demister Pad SS 304 Material Smaller Model Custom
Demister Pad Description
Demister pad,also called mist eliminator,wire mesh demister,mist mesh pad,catching mist,is used in gas entrained mist separation column to guarantee the filtering efficiency.
The wire mesh demister pad is a gas-liquid separation device. The gas passes through the wire pad of the demister, and the entrained mist can be discharged. The wire mesh demister can not only filter out the larger liquid foam suspended in the air flow, but also filter out the small and micro liquid foam. It is widely used in gas-liquid separation in chemical, petroleum, tower manufacturing, pressure vessel and other industries. in the device.
The wire mesh demister has a collection efficiency of 98%~99.8% for mist with a particle size of ≥3~5 um, while the pressure drop of the gas passing through the demister is very small, only 250-500 Pa, which is conducive to improving the equipment. production efficiency.
The wire mesh demister can be made of a variety of materials, and can be customized according to user needs.
Demister Pad Features
*Efficient defogging and droplet capture efficiency can usually reach over 98%.
*Low pressure drop, loose structure, large specific surface area, capable of effectively separating liquid droplets while maintaining low resistance to gas flow, typically with a pressure drop of around 100-300 Pa.
*Strong adaptability, can be designed in circular, rectangular, or other shapes depending on the material selection.
*Stable operation, minimal maintenance, no moving parts
*Simple Structure;
*Lightweight and easy to transport;
*High porosity,less pressure drops;
*Large surface area and high separating efficiency;
*Easy to install,operate and maintain;
*Durable and long service life;
*Corrosion and rust resistance;
Demister Pad Specification
Demister Pad Application
*Petrochemical plant Distillation tower, absorption tower, washing tower, flash tower, etc. are used to prevent liquid from being carried into the upstream gas system. Prevent solution mist from entering subsequent equipment in desulfurization and decarbonization units.
*Fertilizer, pharmaceutical, and metallurgical industries During the synthesis of ammonia and urea, gas purification towers are used to capture liquid droplets. Pharmaceutical distillation tower, extraction tower gas-liquid separation.
*Environmental Protection and Waste Gas Treatment Capture slurry droplets in flue gas desulfurization (FGD) towers to reduce secondary pollution. Used in various acid mist purification towers to capture acid mist.
*Natural gas and coal chemical industry Natural gas purification and gas washing tower to prevent solvent carryover.
*Other industries Shipbuilding industry: gas-liquid separation of distilled fresh water equipment for ships. Food industry: alcohol distillation tower, vegetable oildistillation tower
Demister Pad Package
1.wrapped with plastic film
2.With wooden cases or wooden pallet
