Twin-Rail Double-Wire Fence Panel — Vertical Rod Security System

Product Overview
The Twin-Rail Double-Wire Fence Panel is a vertical-rod security solution built around two continuous horizontal rails that clamp and weld a dense array of vertical round rods. This geometry provides a clean, architectural appearance while delivering strong anti-climb and anti-pry performance. Panels are commonly used where perimeter visibility, pedestrian safety and visual integration with landscaping are required alongside robust perimeter control.

Construction & Finish

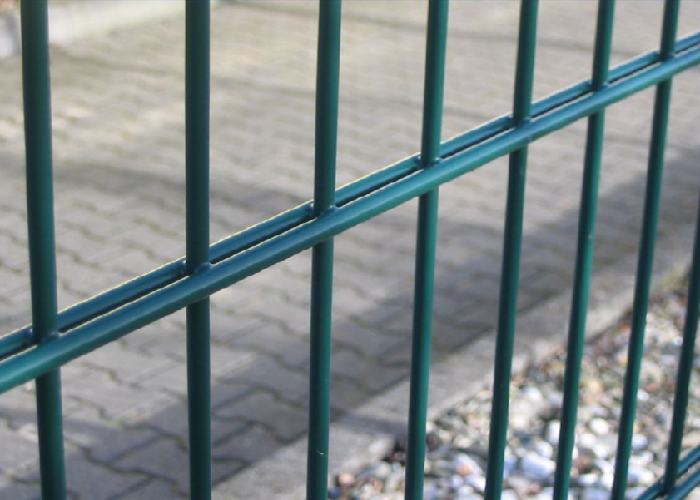

Each panel is fabricated by welding vertical round rods into twin horizontal rails at fixed intervals, then finishing the assembly with corrosion protection. Typical rod diameters range from 12 mm to 18 mm with center-to-center spacing of 50–75 mm depending on anti-climb needs. Standard finish is hot-dip galvanize followed by polyester powder coating; duplex coatings or stainless steel are recommended for high-corrosion environments. Welds and rail joints are ground and painted to present a uniform surface consistent with the supplied product image.

Security Performance & Applications
The closely spaced vertical rods with twin rails form a barrier that is difficult to scale and resists local prying or cutting when configured with heavier rod gauges and tamper-resistant fixings. Typical applications include transport hubs, schools and campuses, commercial perimeters, parks and residential estates where both appearance and perimeter delay are required. For critical infrastructure, specify thicker rods, welded infill and anti-tamper fasteners.

Installation & Maintenance

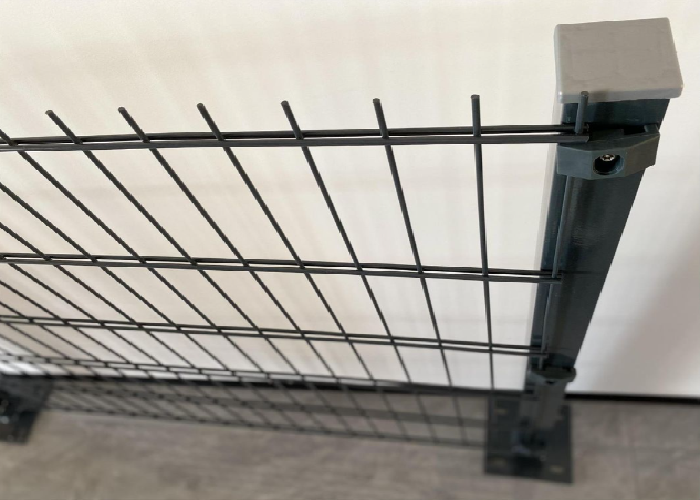

Panels bolt to modular posts via concealed clamp plates or flange mountings; buried sleeves or in-ground anchors are available for permanent installations. The twin-rail geometry simplifies handling — panels stack flat for transport and mount quickly on site. Routine maintenance is limited to periodic inspection of fixings and surface touch-ups; replacement of a single panel is straightforward due to modular design.

Specification Table
