Twin Rod Double Wire Fencing Panel High Rigidity Perimeter System

Twin-Rod Double Wire Fence Panel— High-Rigidity Perimeter System

The Double-Wire Fence-Product Overview:

The Professional Double-Wire Fence Panel (commonly referenced by series such as 868 and 656) is a twin-rod welded mesh system engineered for linear perimeter work where straightness, visual transparency and mechanical stiffness are required. Two horizontal rods welded to vertical wires produce a panel that spans long runs with minimal sag and reduced reliance on heavy intermediate rails. Standard widths are 2.0 / 2.5 / 3.0 m and heights typically range 1.0–3.0 m depending on the application.

Construction & Performance:
Typical wire profiles include combinations such as 6/5/6 mm or 8/6/8 mm (horizontal/vertical/horizontal). Each intersection is fusion-welded to ensure repeatable shear and bending capacity. The double horizontal (twin-rod) arrangement increases local stiffness and distributes loads more evenly along the verticals, which results in improved panel flatness and less deflection under wind or impact loads. Common mesh openings (50×100, 50×150, 50×200 mm) balance surveillance sightlines with anti-tamper performance.

Advantages:
Double-wire panels offer an excellent stiffness-to-weight ratio: less framing mass is needed compared with heavy framed fencing, lowering material and labor costs on long perimeters. The panels are modular and standardized, simplifying procurement and on-site logistics — single damaged panels can be replaced without affecting adjacent sections. The weld-at-every-node construction reduces the number of weak points and increases resistance to localized deformation.

Installation & Maintenance:

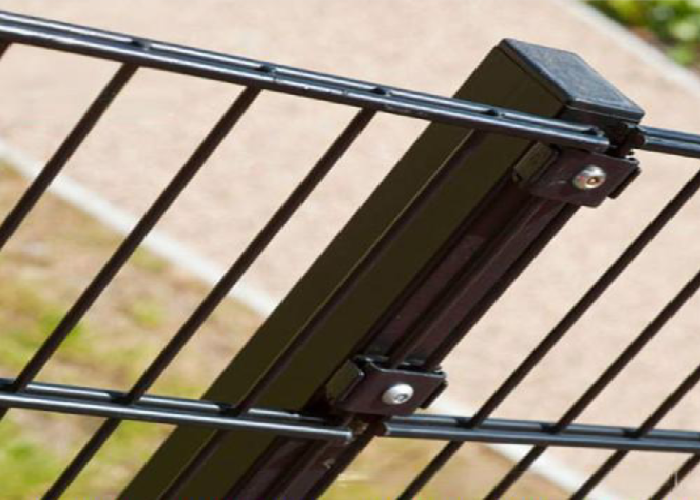

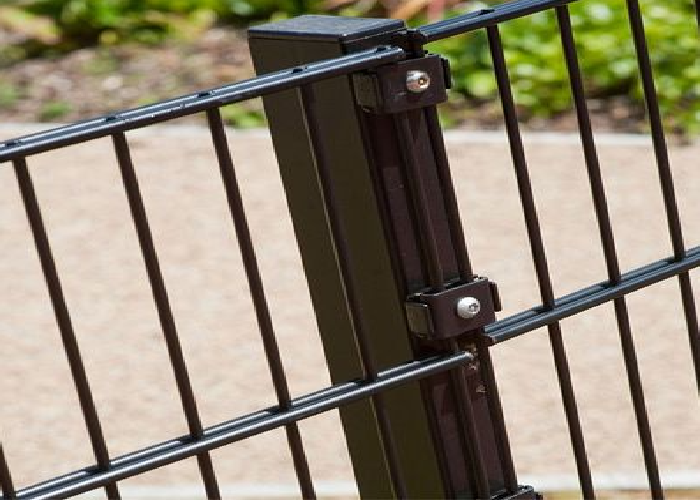

Installation typically uses factory-matched clamps or pressed brackets to attach panels to posts, with foundation selection (in-ground vs baseplate) driven by soil conditions and wind loading. Fasteners should be chosen to match the coating system to avoid galvanic issues. Routine maintenance consists of annual inspection of fixings and coating condition; prompt touch-up of any exposed metal prevents corrosion from undermining structural performance. Spare clip and bolt kits are recommended as part of the project handover.

Applications:
This system is suited to industrial parks, commercial campuses, logistics yards, sports facilities and educational campuses. For higher security requirements select heavier wire gauges and tighter mesh; for landscape or residential edges choose lighter gauges with decorative post caps. The system integrates well with CCTV sightlines and perimeter detection devices while keeping a clean visual profile.
