Twin Rod Double Wire Fence Panel Tested Performance Scheduled Delivery
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001,SGS |
| Model Number | LJ-04 |
| Minimum Order Quantity | 30 pcs |
| Price | $13.6-29.5/pc |
| Packaging Details | By pallet or as demand |
| Delivery Time | 7-15 work day |
| Payment Terms | T/T,L/C |
| Supply Ability | 5000pcs/week |
Product Details
| Material: | Low-carbon Steel Wire (options: Hot-dip Galvanized, Stainless Steel) | Color: | RAL Color Matching Available (sample Swatches Supported) |
|---|---|---|---|
| Sample & Lead Time: | Standard Sample 7–10 Days; Bulk Lead Time 3–6 Weeks (depends On Customization) | Panel Weight: | Approx. 10–20 Kg/m² (varies By Wire Gauge & Mesh) |
| Coating Thickness: | Zn Mass 250g/m²; Powder Coat 40–80 μm (customizable) | Accessories Included: | Accessories Included: Standard Clamps, Bolt Kits, Post Caps, Installation Guide |
| Warranty: | Standard 12-month Warranty; Coating/structural Warranty Extendable Per Contract | Certification: | ISO9001,SGS,ISO 9001 |
| Highlight: | twin rod double wire fence panel,twin rod double loop wire fence,galvanized double loop wire fence |
||
Product Description
Twin-Rod Double Wire Fence Panel — Tested Performance Scheduled Delivery
The Double-Wire Fence-Product Information:

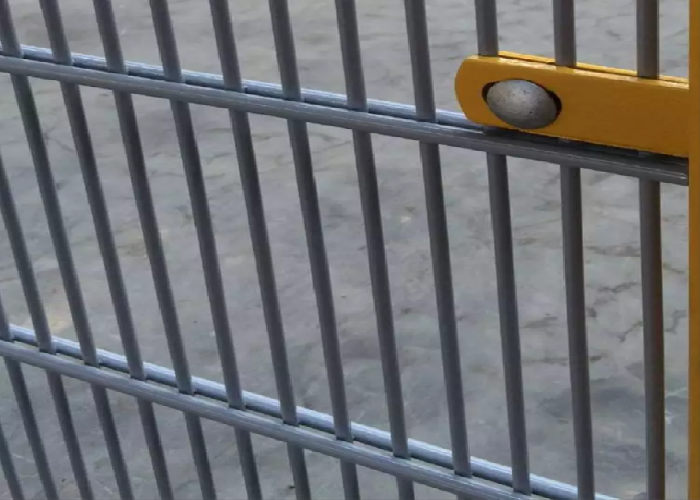

The Twin-Rod V-Mesh double wire fence panel is a welded mesh system combining two horizontal wires with vertical wires to form a stiff V-formed panel. The V geometry increases bending stiffness without excessive material use, so panels maintain straightness over long runs and resist local deformation. Standard widths include 2000, 2500 and 3000 mm; heights are customizable from 1.0 m up to 3.0 m or more for special projects. This product is engineered for projects where predictable mechanical behavior and on-time delivery matter.
Key Features:
Each panel is fusion-welded at every node for consistent shear strength. Typical wire configurations are 6/5/6 mm and 8/6/8 mm; mesh openings of 50×100 / 50×150 / 50×200 mm balance visibility and deterrence. Coating spec (Zn mass and powder film thickness) is provided with each quotation to allow buyers to verify corrosion protection against their site conditions.
Customization & Samples
We support color matching (RAL), custom panel heights and alternative materials (stainless or aluminum) for corrosive environments. Samples are available — request a color swatch or a physical sample; standard sample lead time is 7–10 days, allowing quick pre-shipment verification.
Applications
Suitable for commercial perimeters, logistics yards, school campuses, parks and mid-security industrial sites. Choose denser mesh and thicker wires for elevated protection, or lighter specs for landscape and municipal uses.
Quality & Warranty
Quality control includes incoming material checks, weld sampling and coating thickness testing. We provide factory inspection reports and can arrange third-party testing when required. Standard warranty is 12 months; extended warranties and spare parts supply are available under contract.
| Item | Typical |
|---|---|
| Panel Width | 2000 / 2500 / 3000 mm |
| Panel Height | 1.0–3.0 m (custom) |
| Wire Diameter | 6/5/6 mm, 8/6/8 mm (options) |
| Mesh Opening | 50×100 / 50×150 / 50×200 mm |
| Panel Weight | ≈ 10–20 kg/m² (varies) |
| Zn Mass / Coating | Zn 250–600 g/m²; powder 40–80 μm |
| Sample Lead Time | 7–10 days |
| Warranty | 12 months (extendable) |
