High Strength Anti Slip Steel Grating For Industrial Platforms Drainage
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | Luo Jie |
| Certification | ISO9001 |
| Model Number | LJ-08 |
| Minimum Order Quantity | 50Pcs |
| Price | $5-26/pc |
| Packaging Details | 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements. |
| Delivery Time | 5-10days |
| Payment Terms | L/C,T/T |
| Supply Ability | 5000Pcs Per Month |
Product Details
| Product Name: | High-Strength Anti-Slip Steel Grating For Industrial Platforms Drainage | Key Word: | Steel Grating, Industrial Platform Grating, Anti-Slip Drainage Grate, Stainless Steel Grate |
|---|---|---|---|
| Material: | Q235 Carbon Steel; SS304/316L Stainless Steel; Bar Thickness: 5-10mm | Structure: | Welded/Plug-In Type; Anti-Slip Serrated Surface; Grid Size: 20×100/30×100mm |
| Specifications: | Length 1-6m; Width 0.5-1.5m; Load Capacity: 5-50kN/m² | Packaging: | Wooden Pallet + PE Film (10pcs/pallet); Waterproof Wrap For Coastal Shipment |
| Sample Policy: | 1pc Free Sample (Freight Collect) | Installation Kits: | Free Clip Fasteners + Installation Manual; Anti-Rust Gaskets Included |
| Highlight: | high strength anti slip steel grating,industrial non slip steel grating,industrial anti slip steel grating |
||
Product Description

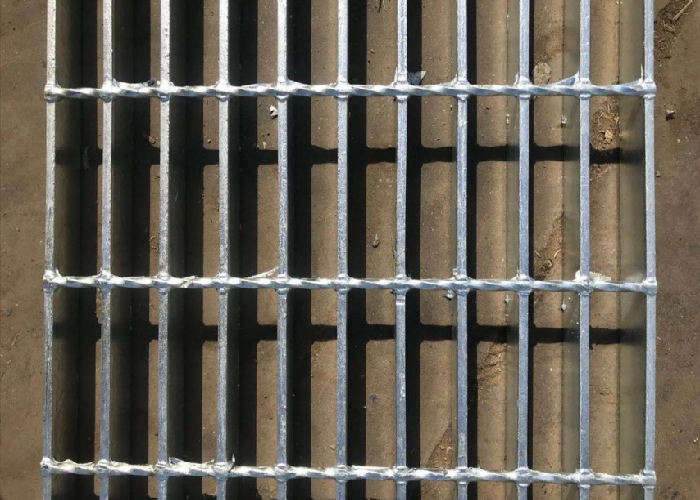

High-Strength Anti-Slip Steel Grating for Industrial Platforms Drainage
Product Description:
Our High-Strength Anti-Slip Steel Grating is engineered for industrial core scenarios (platforms, walkways, drainage channels) – solving pain points like slippery surfaces (workplace accidents), poor load capacity (equipment damage), and corrosion (short service life). The serrated anti-slip surface increases friction by 40% vs. plain steel, eliminating slips even in oily/wet environments. Welded structure (weld strength ≥35MPa) ensures stable load-bearing (up to 50kN/m² for heavy equipment), while SS304/316L options resist chemical corrosion (ideal for chemical plants/coastal areas). It’s the standard choice for factories, power plants, and industrial parks worldwide.
Core Characteristics:
Extreme Anti-Slip & Safety: Serrated surface + 20×100mm small grid – prevents foot slips (oily/wet conditions) and tool/part falling (industrial platform safety compliance).
Durable & Corrosion-Proof: Q235 hot-dip galvanized (120μm zinc layer, 10-year outdoor service); SS316L passes 500-hour salt spray test (coastal/chemical use).
Easy Installation & Maintenance: Lightweight (15-30kg/m²) + free clip fasteners – 2 workers install 100m²/day; open grid design (no water/dirt accumulation, easy to clean).
Typical Application:

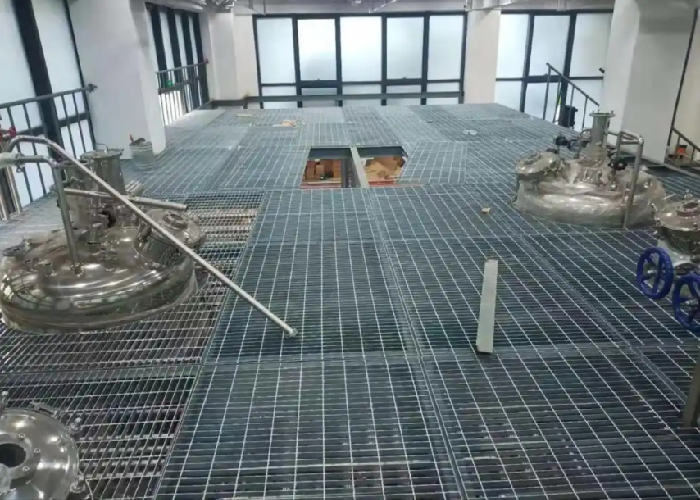

Industrial Platforms: Q235 galvanized type (load 30kN/m²) – fits factory equipment platforms, power plant maintenance walkways (resists heavy tool collision).
Drainage Channels: SS304 type (corrosion-proof) – chemical plant/coastal area drainage grates (prevents rust clogging, ensures smooth water flow).
Stair Treads: Serrated surface + 50kN/m² load – industrial staircase steps (oily workshop use, no slips; easy to replace single tread if damaged).
Specification:
|
Model
|
Material
|
Bar Size (Width×Thickness)
|
Spacing (Bar×Cross Bar)
|
Load Capacity
|
Surface Treatment
|
Applicable Market
|
|
G253/30/100
|
Q235 Steel
|
25mm×3mm
|
30mm×100mm
|
≥45kN/m²
|
Hot-Dip Galvanization
|
North America, Middle East
|
|
G325/30/100
|
Q345 Steel
|
32mm×5mm
|
30mm×100mm
|
≥50kN/m²
|
Hot-Dip Galvanization
|
Heavy Industry (Mining)
|
|
G203/40/100
|
Q235 Steel
|
20mm×3mm
|
40mm×100mm
|
≥30kN/m²
|
Hot-Dip Galvanization
|
Europe, Southeast Asia
|
|
SS304-325/30/100
|
SS304 Steel
|
32mm×5mm
|
30mm×100mm
|
≥48kN/m²
|
Polishing
|
Chemical Plants
|
FAQ:
Q1: What load capacity do I need for a worker platform (200kg/person)?
A1: Recommend 10kN/m² (Q235 5mm bar thickness) – safe for 2-3 workers + tools (no deformation).
Q2: Can SS304 grating be used in chemical tanks?
A2: Yes – SS304 resists most acids/bases; for strong corrosion (e.g., sulfuric acid), choose SS316L (better molybdenum content).
Q3: How to install without welding?
A3: Use our free clip fasteners – attach to steel beams in 30 seconds per clip, no damage to grating (easy to disassemble for maintenance).
Q4: What’s the delivery time for 200m² custom size (3×1.2m, SS304)?
A4: 12 days (production + packaging) – faster than peers (15-20 days) with no extra custom cost.
