Steel Grating with Integrated Cable Management and Anti-Slip Options

Place of Origin Hebei Province,China
Brand Name Luo Jie
Certification ISO9001
Model Number LJ-08
Minimum Order Quantity 50Pcs
Price $5-26/pc
Packaging Details 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Delivery Time 5-10days
Payment Terms L/C,T/T
Supply Ability 5000Pcs Per Month
Product Details
Origin Of Place: Hebei,China Key Word: Steel Walkway Grating
Technique: Welded Mesh Bearing Bar Spacing: 30mm, 40mm, 60mm
Usage: House Construction Company Type: Manufacturer
Color: Customized Color Port: Tianjin
Highlight:

steel grating with cable management

,

anti-slip steel grating

,

steel grating with warranty
Leave a Message
Product Description

Steel Grating with Integrated Cable Management and Anti-Slip Options



Product Overview:

This steel grating solution is engineered for modern building and infrastructure projects that require digital coordination, rapid onsite integration, and multi-service routing. Each panel is delivered as a prefabricated unit with optional cable troughs and access features, enabling contractors to install grating and route services in the same operation. The product emphasizes predictable installation times, reduced site rework and improved lifecycle traceability via BIM deliverables.

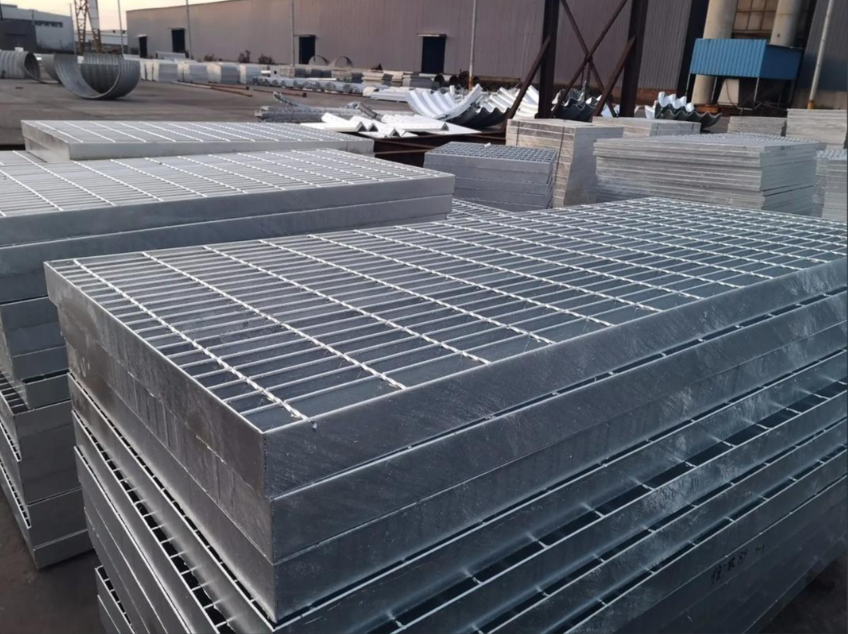

Steel Grating with Integrated Cable Management and Anti-Slip Options 0

Prefab & Project Coordination

  • Supplied BIM objects include accurate geometry, material specs, fastening details and weight for clash detection and crane/trolley planning.
  • Prefabricated framing and hole patterns reduce on-site cutting; panels ship pre-drilled for fast bolting.
  • Factory-assembled hinges and quick-release clips allow safe access without hot-work, supporting strict site safety procedures.

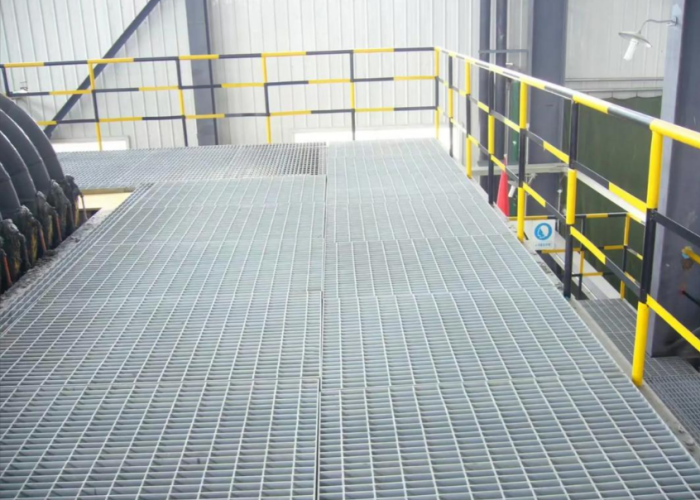

Steel Grating with Integrated Cable Management and Anti-Slip Options 1

Installation, Logistics & Modular Repair Strategy

  • Panels are nested and palletized to optimize transport volume; labelled with panel ID matching BIM.

  • Onsite sequencing plan: deliver heavy sections just-in-time; keep pre-staged replacement panels for critical access points.

  • Repair strategy: modular panels permit swapping individual panels within minutes using quick clips and spares—ideal for turnaround or emergency repairs.

Differentiated Use Cases

  • Data center raised floors with integrated cable trough lanes and removable access panels.

  • Hospital plant rooms where no-hot-work replacement and rapid access are safety requirements.

  • Coastal utility decks with duplex coating and neoprene pad isolation to reduce galvanic corrosion.

  • Transit platform sections where quick replacement reduces service disruption.

Steel Grating with Integrated Cable Management and Anti-Slip Options 2

Specification:

Item Typical Range Notes
Bearing Bar Section 25×3, 30×5, 40×6 mm (custom) Wider section → higher span/load.
Cross Bar Type Twist rod Ø6–8 mm, Flat bar 5–8 mm Welded or press-locked options.
Bar Spacing 20 / 30 / 40 mm typical Affects open area & load distribution.
Panel Size Std 1000×2000 mm; cut-to-size Panels can be supplied with welded frames.
Surface Finish HDG / Powder coat / Bare HDG recommended for outdoor/marine.
Anti-Slip Serrated, Grip-pattern (to meet R13 / PTV reqs) Specify testing standard if critical.
Representative UDL 4–20 kN/m² (by section) Final spec requires structural calcs.
Typical Weight 8–30 kg/m² (varies by section) Used for handling & span design.

Quality Assurance, Packaging & Samples

Each production lot includes material certificates, dimensional inspection report and a sample panel upon request. Panels are palletized with edge protection and shrink-wrapped or crated for export; special sea-fast packing available for offshore projects. Third-party load testing and salt-spray reports can be provided for project bids.

Steel Grating with Integrated Cable Management and Anti-Slip Options 3
