Reinforced Woven Gabion Rock Box Mesh For Slope River Wall Protection
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-12 |
| Minimum Order Quantity | 50 Sets |
| Price | $8.5-10.9 per meter |
| Packaging Details | steel pallet |
| Delivery Time | 7-20days according to the quantity |
| Payment Terms | T/T |
| Supply Ability | 1000 sets per day |
Product Details
| Production: | Woven Gabion Mesh | Key Words: | Gabion Box |
|---|---|---|---|
| Material: | Steel | Wire Gauge: | 2.7mm |
| Aperture: | 100*120mm | Size: | 1x1x0.5m |
| Wire Diameter: | 2.0-4.0mm | Width: | 0.5-2m |
| Mesh Size: | 80x100 | Zinc Coated: | 270g |
| Surface Treatment: | Hot Dipped Zink Coated | Color: | Silver |
| Usage: | Flood Control Retaining Wall | Feature: | Durable |
| Hole Shape: | Hexagonal | Sample: | Available |
| Highlight: | woven gabion rock box,reinforced gabion rock box,reinforced gabion wire mesh |
||
Product Description
Reinforced Woven Gabion Mesh For Slope River Wall Protection
Gabion Mesh Description

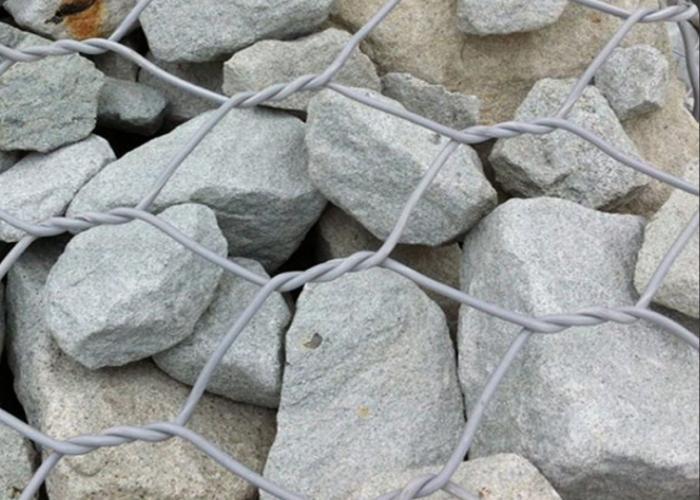

Gabion boxes are made of triple twist hexagonal woven wire mesh. Gabions stand out as the simple, efficient and economical solution, as the cages are simply filled with natural stone and also proven as environmentally friendly.
We design and supply Gabion Box made of double twisted hexagonal wire mesh or welded wire mesh. This kind of mesh not only used as a gabion box, it also can be customized, not only the shape, size. and also can add small parts to make the mesh is more strong. one of our client asked us to add steel rope in the border and middle position, the gabion can be in roll or a box.
Gabion Mesh Specification
|
Specification Of Gabion Basket
|
|||||
|
Gabion size
(m)
|
Wire diameter
|
Mesh opening
|
Surface treatment
|
||
|
Mesh wire
(mm)
|
Selvage wire
(mm)
|
Tie wire
(mm)
|
|||
|
2×1×0.5
|
2.0
2.2
2.4
2.7
3.0
|
2.4
2.7
3.0
3.4
3.9
|
1.8
2.0
2.2
|
60 x 80mm
80 x 100mm
80 x 120mm
100 x 120mm
120 x 150mm
|
Galvanized
Galfan
PVC coated
PE coated
|
|
2×1×1.0
|
|||||
|
3×1×0.5
|
|||||
|
3×1×1.0
|
|||||
|
4×1×1.0
|
|||||
|
6×1×1.0
|
|||||
|
2×1×0.3(Mattress)
|
|||||
|
3×1×0.3(Mattress)
|
|||||
|
All sizes can customized according to your request
|
|||||
Gabion Mesh Advabtages
Gabion Mesh Application
Gabion basket can be used for slope support, foundation pit support, shotcrete on the surface of mountains and stones, slope vegetation (greening), railway and highway isolation fences, and can also be made into cage net pads to prevent scouring and protect rivers, dams and seawalls. Gabion net is used to intercept reservoirs and rivers.
1.Retaining walls and soil reinforcement;
2.Coastal protection, marine structure and pipeline protection;
3.Hydraulic engineering;
4.Landscape and architecture; so on
4.Landscape and architecture; so on

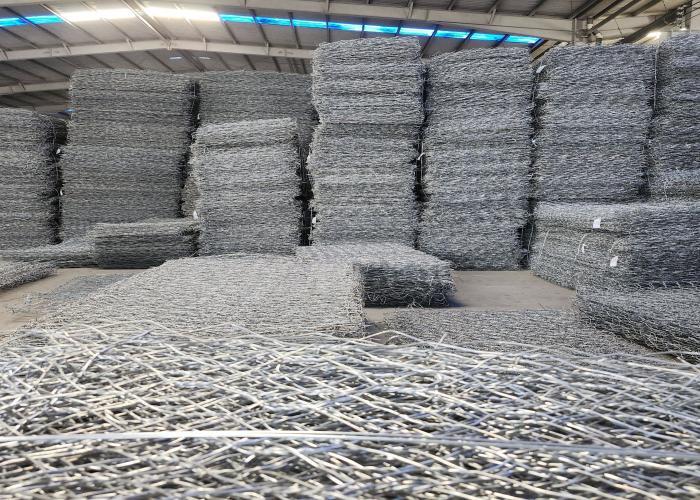

Gabion Mesh Package
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
