Hot Dipped Galvanized Gabion Mesh For River Channel Management
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-12 |
| Minimum Order Quantity | 50 Sets |
| Price | $8.5-10.9 per meter |
| Packaging Details | steel pallet |
| Delivery Time | 7-20days according to the quantity |
| Payment Terms | T/T |
| Supply Ability | 1000 sets per day |
Product Details
| Production: | Gabion Mesh | Key Words: | Stone Filled Wire Mesh Wall |
|---|---|---|---|
| Wire Diameter: | 2.7mm | Mesh Panel Edge Wire: | 3.2mm |
| Width: | 0.5-2m | Mesh Size: | 60x80mm |
| Material: | Galvanized Steel Wire | Good Corrosion Resistance: | Oxidation Resistance |
| Hole Shape: | Hexagonal | Coating: | Heavily Zinc Coated |
| Guarantee: | Life-time | Application: | River Channel Management |
| Highlight: | hot dipped galvanized gabion mesh,galvanized gabion wire mesh,hot dipped gabion wire mesh |
||
Product Description
Hot Dipped Galvanized Gabion Mesh For River Channel Management

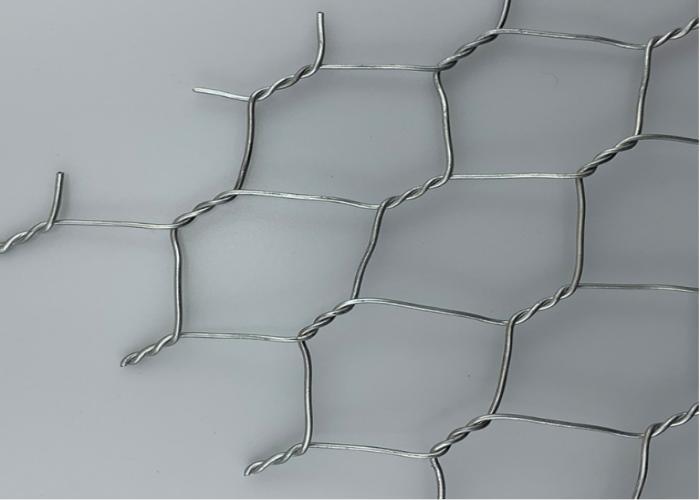

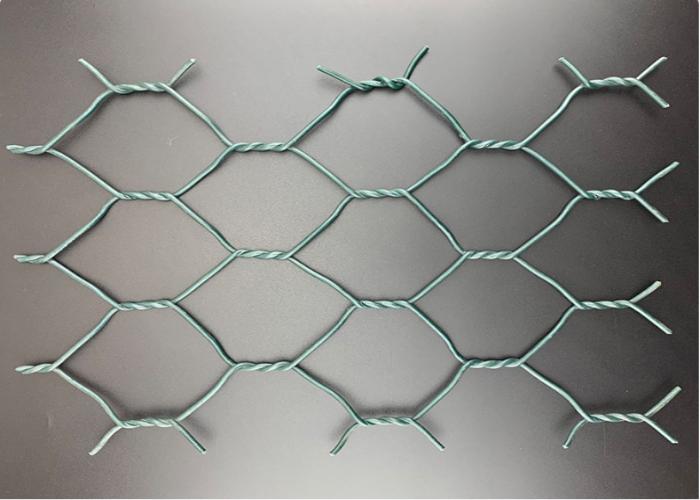

Gabion Mesh Description
Gabion Basket are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.
Gabion Mesh Specification
|
Specification Of Gabion Basket
|
|||||
|
Gabion size
(m)
|
Wire diameter
|
Mesh opening
|
Surface treatment
|
||
|
Mesh wire
(mm)
|
Selvage wire
(mm)
|
Tie wire
(mm)
|
|||
|
2×1×0.5
|
2.0
2.2
2.4
2.7
3.0
|
2.4
2.7
3.0
3.4
3.9
|
1.8
2.0
2.2
|
60 x 80mm
80 x 100mm
80 x 120mm
100 x 120mm
120 x 150mm
|
Galvanized
Galfan
PVC coated
PE coated
|
|
2×1×1.0
|
|||||
|
3×1×0.5
|
|||||
|
3×1×1.0
|
|||||
|
4×1×1.0
|
|||||
|
6×1×1.0
|
|||||
|
2×1×0.3(Mattress)
|
|||||
|
3×1×0.3(Mattress)
|
|||||
|
All sizes can customized according to your request
|
|||||
Gabion Mesh Advabtages
Gabion Mesh Application
Gabion basket can be used for slope support, foundation pit support, shotcrete on the surface of mountains and stones, slope vegetation (greening), railway and highway isolation fences, and can also be made into cage net pads to prevent scouring and protect rivers, dams and seawalls. Gabion net is used to intercept reservoirs and rivers.
Gabion Mesh Package
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport
and further installation.
