Stainless Steel Metal 316L Structured Packing Corrugated Plate
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-15 |
| Minimum Order Quantity | 50 Sets |
| Price | $8.5-10.9 per piece |
| Packaging Details | Wooden cases,Wooden Pallet,steel pallet |
| Delivery Time | 7-20days according to the quantity |
| Payment Terms | T/T |
| Supply Ability | 1000 sets per day |
Product Details
| Production: | Structured Packing | Key Words: | Orifice Plate Corrugated Metal Packing |
|---|---|---|---|
| Shock Absorption: | High Shock Absorption | Water Resistance: | Waterproof |
| Usage: | Protective Packaging | Customizable: | Can Be Customized According To Specific Needs |
| Size: | Various Sizes Available | Eco-Friendly: | Made From Recyclable Materials |
| Durability: | Durable | Shape: | Rectangular |
| Highlight: | 316l structured packing,structured packing corrugated,316l structured packings |
||
Product Description

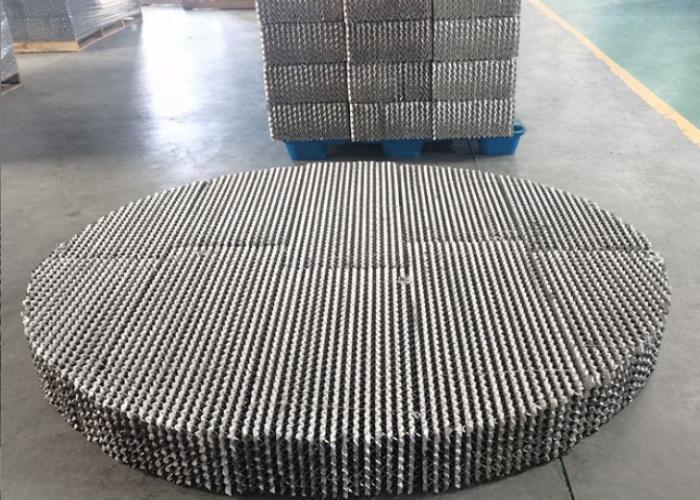

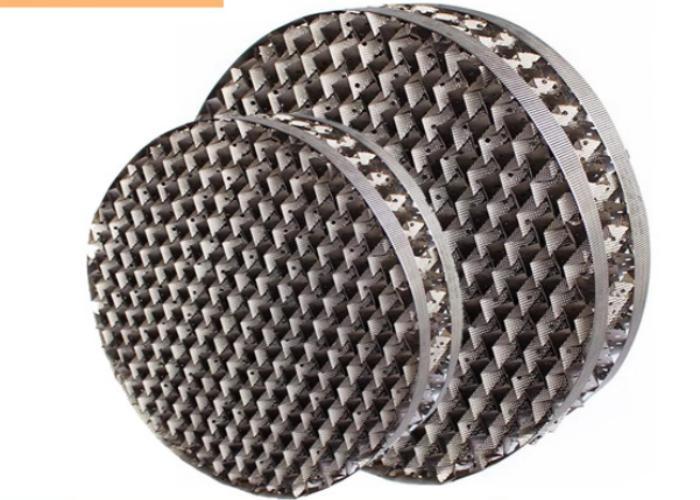

Stainless Steel Metal 316L Structured Packing Corrugated Plate
Structured Packing Description
The main feature of the stainless steel mesh corrugated structured packing is to directly punch and stretch the stainless steel metal plate into a smaller-sized diamond-shaped mesh plate, then punch it into a corrugated sheet, and then assemble it into a packing tray. It combines the performance advantages of metal wire mesh corrugated packing and metal plate corrugated packing, and is a new type of packing with higher efficiency and lower price. Due to its large specific surface area, it is more efficient. The regular diamond-shaped NetEase is covered by a liquid film, and the uneven surface enhances the turbulence, mixing and surface renewal of the liquid film.
Structured Packing Advantage
(1) High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
(2) High separation efficiency. Since it has much larger specific surface area compared to random packing.
(3) Low pressure drop, which leads to reduce energy consumption largely.
(4) Large flexibility, and scale effect is not obvious.
(5) Suitable for all tower diameters.
(6) Strong resistance to corrosion of acid and alkali,especially to H2S, naphthenic acid and Cl- .
Structured Packing Specification
|
Void volume
|
Piece thick
|
Bulk Density
|
Waved height
|
Waved distance
|
Gear-shape angle
|
F-factor
|
|
(mm)
|
(kg/m3)
|
(mm)
|
(mm)
|
(φ)
|
(φ)
|
|
|
76
|
1 +/-0.2
|
600
|
6
|
11
|
80
|
1.5-2
|
|
80
|
1.2+/-0.2
|
580
|
9
|
15
|
80
|
2
|
|
82
|
1.4+/-0.2
|
530
|
13
|
22
|
80
|
2.5
|
|
84
|
2.2+/-0.2
|
500
|
17
|
30
|
80
|
2.8
|
|
85
|
2.5+/-0.5
|
480
|
23
|
42
|
80
|
3
|
|
87.5
|
2.5+/-0.5
|
460
|
30
|
50
|
80
|
3.5
|
Structured Packing Application
(1) Rectifying organic halide.
(2) Rectifying and absorbing some corrosive mixtures, which are definitely regulated
in pressure drop and theoretic plate number.
(3) Applied in some towers that contain a large quantity of natural media used to
absorb nitric acid and concentrated sulfuric acid, as well as for purifying theair in chemical plants.
(4) Operating in vacuum conditions at a bottom absolute pressure of 100pa.
(5) Used in heat exchanger and demisting, or as a catalyst carrier
Structured Packing Package
1.wrapped with plastic film
2.With wooden cases or wooden pallet
