Anti Slip Diamond Expanded Metal Mesh High Strength For Construction Security
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | Luo Jie |
| Certification | ISO9001:2015 |
| Model Number | LJ-09 |
| Minimum Order Quantity | 50 Square Meters |
| Price | $4~20 |
| Packaging Details | palletized or loose load in the container |
| Delivery Time | 5-8 work days |
| Payment Terms | ,L/C,T/T |
| Supply Ability | 10000 Square Meters per Week |
Product Details
| Product Name: | Expanded Metal Mesh | Key Word: | Expanded Metal Mesh, Diamond Expanded Mesh |
|---|---|---|---|
| Material: | Q235/Q345 Carbon Steel, SS304/316L Stainless Steel, Aluminum Alloy | Model Range: | SWM Series (Diamond) & HEX Series (Hexagonal) |
| Mesh Size: | 5×10mm~50×100mm (Customizable) | Surface Treatment: | Hot-Dip Galvanization, Powder Coating, Polishing (Stainless Steel) |
| Sheet Thickness: | 0.5mm~6.0mm (Load Capacity: ≥20kN/m²) | Certification: | ISO 9001 |
| Highlight: | anti slip diamond expanded metal mesh,diamond expanded metal mesh sheet,security expanded metal mesh sheet |
||
Product Description

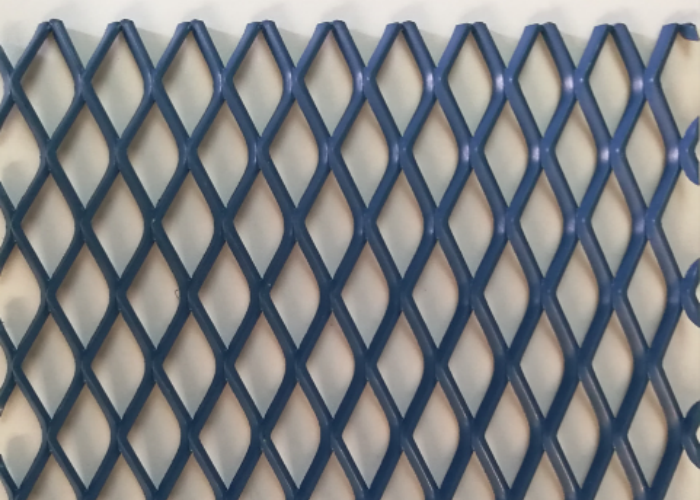

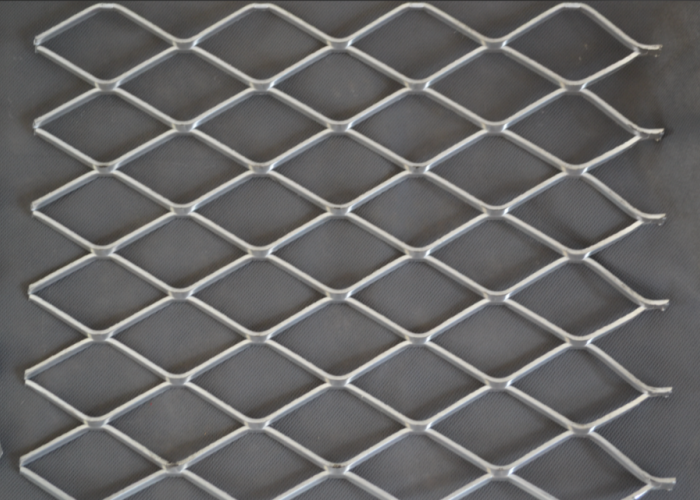

Anti-Slip Diamond Expanded Metal Mesh High-Strength for Construction Security
Product Description:
Our Expanded Metal Mesh series features a unique "no-weld" expanded structure, available in two core types: Diamond (SWM Series) for high-strength scenarios (construction, security) and Hexagonal (HEX Series) for filtering/ventilation needs. Made from Q235/Q345 carbon steel, stainless steel, or aluminum alloy, it integrates anti-slip performance, corrosion resistance, and light weight—unlike welded wire mesh, it has no loose joints, ensuring long-term stability in harsh environments. The customizable mesh size (5×10mm~50×100mm) and sheet thickness (0.5mm~6.0mm) cover 90% of industrial and civil applications.
Specification:
|
Material
|
Mesh Size
|
Sheet Thickness
|
Surface Treatment
|
Load Capacity
|
Applicable Scenario
|
|
Q235 Steel
|
10×20mm
|
1.5mm
|
Hot-Dip Galvanization
|
≥25kN/m²
|
Construction Scaffolding
|
|
Q345 Steel
|
25×50mm
|
3.0mm
|
Powder Coating (Black)
|
≥40kN/m²
|
Security Fencing
|
|
Aluminum Alloy
|
8×15mm
|
1.0mm
|
Natural Anodizing
|
≥15kN/m²
|
Ventilation/Filtering
|
|
SS304 Steel
|
15×30mm
|
2.0mm
|
Polishing
|
≥30kN/m²
|
Chemical Plant Corrosion Protection
|
Characteristics:
High Strength & Durability: No-weld expanded structure (tensile strength ≥350MPa) – 30% more impact-resistant than welded mesh
Anti-Slip Performance: Diamond surface texture (friction coefficient ≥0.7) – safe for wet construction sites
Corrosion Resistance: Hot-dip galvanization (Zn: 85-110μm) or stainless steel material – 10+ years service life outdoors
Light Weight & Easy Installation: 8-15kg/㎡ (vs. 15-25kg/㎡ for welded mesh) – 1 person installs 50㎡/hour
Multi-Purpose Design: Diamond/Hexagonal mesh + multi-material options for construction, security, filtering, etc.
Advantages:
Global Standard Compliance: Meets ASTM A478 (US) and EN 10245 (EU) – no import barriers for global markets
Cost-Effective: 20% lower price than stainless steel welded mesh; 15% longer lifespan than ordinary expanded mesh
Fast Customization: Non-standard mesh size/sheet size (max 2m×6m) delivered in 8 days (vs. 12 days for peers)
Low MOQ: 30㎡ for standard models (vs. 50㎡ for competitors) – friendly for small-batch trials
Eco-Friendly: 100% recyclable material; no waste during production (expanded from whole steel sheet)
Application:
Construction Industry: Scaffolding platforms, floor gratings, facade cladding (SWM Series recommended)
Security & Fencing: Perimeter security fences, prison barriers, machine guards (SWM-25×50×3.0 model)
Filtering & Ventilation: Air filters, water treatment screens, equipment ventilation grates (HEX Series)
Industrial Manufacturing: Conveyor belts, noise reduction panels, automobile parts (aluminum alloy HEX Series)
Civil Applications: Balcony railings, stair treads, garden fences (custom color powder coating)
