Ti Mesh PEM Electrolytic Cell Titanium Expanded Metal Mesh Micro Hole 0.5mm
| Place of Origin | Hebei Province |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-09 |
| Minimum Order Quantity | 100pcs |
| Price | $11.9-18.9 per pc |
| Packaging Details | by wooden box |
| Delivery Time | 8-15 days according to quantity |
| Payment Terms | T/T |
| Supply Ability | 5000 ㎡ per week |
Product Details
| Product Name: | Expanded Metal Mesh | Key Word: | PEM Electrolytic Cell Ti Mesh;titanium Mesh Electrode |
|---|---|---|---|
| Material: | Titanium Ta1 Ta2 | Brand Name: | Luo Jie |
| Ti Content (%): | 99.98% | Procss: | Punching |
| Model Number: | LJ Expanded Mesh | Feature: | Corrosion Resistance |
| Size: | Customized | Application: | Electrolytic Water Etc |
| Highlight: | Ti mesh PEM electrolytic cell,titanium expanded metal mesh,micro hole 0.5mm mesh |
||
Product Description
Ti Mesh PEM Electrolytic Cell Titanium Expanded Metal Mesh Micro Hole 0.5mm

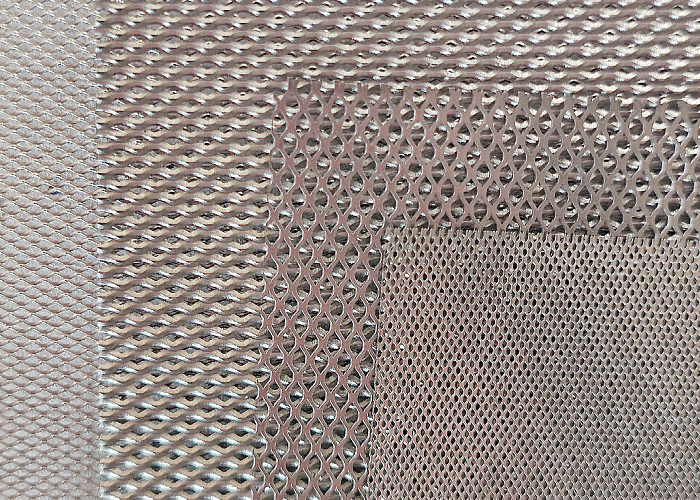

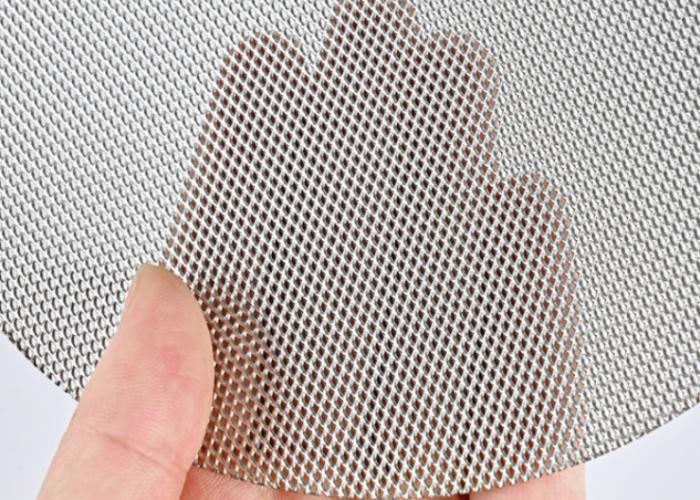

Description of PEM Electrolytic Cell Titanium Expanded Metal Mesh
Titanium expanded metal mesh is valued for its high strength, light weight and corrosion resistant properties. The pure titanium mesh screen are over 99.9% Ti. There have two type titanium mesh, black titanium wire mesh and bright titanium mesh. The black titanium mesh have a protective oxide coating that prevents electrolytic reaction with other metals.
Materials:titanium , Nickel, Aluminum,Copper, Brass, and other metal expanded mesh
Thickness: 0.03mm to 8mm or customized
Opening:0.2mm×0.4mm to 200*400mm
Width:100mm 150mm 200mm 300mm 400mm 1000mm 1200mm or customized
Length:18 20 30 meters roll or customized
Specifications of PEM Electrolytic Cell Titanium Expanded Metal Mesh
|
Material |
Titanium, nickel, Alloy, Copper, Brass, Monel, and other alloy metal.... |
|
Thickness |
0.05mm, 0.1mm 0.3mm 0.5mm, 0.8mm, 1.0mm 2mm, to 5mm |
|
Type |
Flattened Expanded Mesh Type, Standard Expanded Mesh Type |
|
Hole Size |
1*2mm 0.5*1mm 2*4mm 3*5mm 4*8mm 5*10mm.... |
|
Treatment |
Coating treatment can be provided as per your request. |
Features of PEM Electrolytic Cell Titanium Expanded Metal Mesh
1.Continuity--the mesh is formed from a single piece of metal
2.Environment friendly--no wasteful of material
3.High strength--higher strength to weight ration then metal sheet
4.Adherence--anti slip surface
5.Very good noise and fluid filtration--excludes & retains simultaneously
6.Good rigidity--premium reinforcement properties
7.Good conductivity--highly efficient conductor
8.Screening--practical and effective light filtration
9.Good resistance to corrosion
Applications of PEM Electrolytic Cell Titanium Expanded Metal Mesh
1. Sewage Treatment
2. Cathode Protection
3. Noble Metal Plating (silver, gold)
4. Sea Water Antifouling
5. Testing Electrode
6. Electrolytic Synthesis Of Organic
7. Electroplating Industry
8. Electrodialysis
9. Electrolytic Water etc
