Stainless Steel 304 316 Metal Pall Ring For SO2 Wet Scrubber
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | Luo Jie |
| Certification | ISO9001:2015 |
| Model Number | LJ-16 |
| Minimum Order Quantity | 1 cubic meters |
| Price | $280-1500/Cubic Meter |
| Packaging Details | wooden box or customized |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 500 Cubic Meter/Cubic Meters per Month |
Product Details
| Product Name: | Random Packing | Key Word: | Random Pall Ring |
|---|---|---|---|

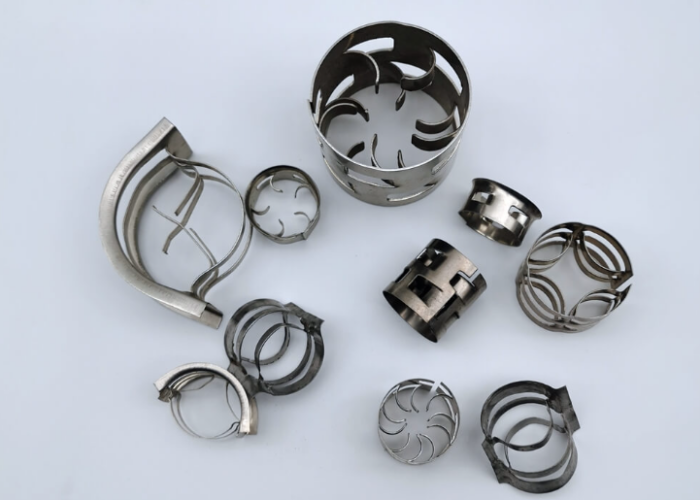

| Material: | Stainless Steel, Plastic | Type: | Pall Rings, Raschig Rings, Berl Saddles, Intalox Saddles |
| Size: | 10 Mm – 100 Mm (customizable) | Surface Area: | 150 M²/m³ – 500 M²/m³ |
| Density: | 0.5 – 1.2 G/cm³ | Application: | Absorption Towers, Scrubbers, Gas Scrubbing Systems |
| Port Of Loading: | Tianjin Port | Certification: | ISO9001:2015,SGS |
| Brand Name: | Luojie | Warranty: | 1 Year |
| Highlight: | 316 metal pall ring,304 metal pall ring,304 pall ring packing |
||
Product Description

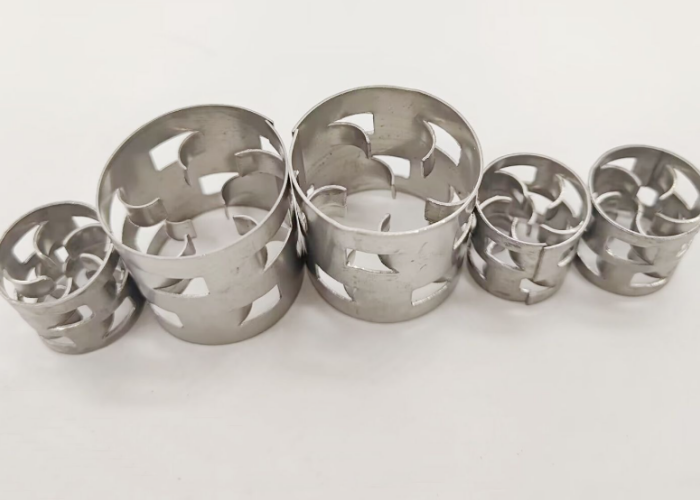

Stainless Steel 304 316 Random Packing Pall Ring For SO2 Wet Scrubber
Description of Random Packing
Metal random packing raschig ring is a fixed geometry of the bulk packing. Its simple shape, height and diameter of the same size. metal raschig ring is widely used in many areas. Metal raschig ring can be a variety of materials, such as carbon steel, stainless steel 304,304 L, 410,316,316 L, etc. to choose from. Metal raschig rings is made of material like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.
Specifications of Random Packing
|
Size (Inch/mm) |
Bulk density (304,kg/m3) |
Number (per m3) |
Surface area (m2/m3) |
Free volume (%) |
Dry packing factorm-1 |
|
|
1/4” |
6*6*0.3 |
900 |
4000000 |
904 |
88.6 |
1307.4 |
|
3/8” |
10*10*0.3 |
480 |
768000 |
482 |
93.8 |
583.8 |
|
1/2” |
13*13*0.3 |
420 |
410000 |
415 |
4.8 |
489.2 |
|
5/8” |
16*16*0.3 |
348 |
201000 |
344 |
95.5 |
393.2 |
|
1” |
25*25*0.4 |
288 |
53500 |
212 |
96.2 |
229.8 |
|
1” |
25*25*0.5 |
367 |
53500 |
216 |
95 |
237.2 |
|
1” |
25*25*0.6 |
439 |
53500 |
219 |
94.2 |
244.1 |
|
1.5” |
38*38*0.4 |
193 |
15180 |
143 |
97.2 |
148.4 |
|
1.5” |
38*38*0.5 |
246 |
15180 |
145 |
96.7 |
151.7 |
|
1.5” |
38*38*0.6 |
328 |
15000 |
146 |
95.9 |
154.6 |
|
2” |
50*50*0.5 |
185 |
6500 |
106 |
97.5 |
128.5 |
|
2” |
50*50*0.8 |
315 |
6500 |
108 |
96.8 |
130.5 |
|
2” |
50*50*1.0 |
380 |
6500 |
132.5 |
96.0 |
134.0 |
|
3” |
76*76*1.0 |
265 |
1920 |
69 |
97.4 |
79.6 |
|
3.5” |
89*89*1.0 |
224 |
1220 |
61 |
97.1 |
66.2 |
Features of Random Packing
-
Large surface area for efficient mass transfer
-
Low pressure drop with high void space
-
Good liquid distribution and wetting performance
-
Available in metal, plastic, and ceramic materials
-
High mechanical strength and chemical resistance
-
Easy installation and replacement
-
Suitable for distillation, absorption, and stripping systems
Applications of Random Packing
1. Distillation Columns
Used in petroleum refining, chemical processing, and solvent recovery systems to enhance vapor–liquid contact and improve separation efficiency.
2. Gas Absorption Towers
Applied in scrubbers to remove contaminants such as SO₂, CO₂, H₂S, ammonia, and VOCs from industrial exhaust streams.
3. Stripping and Desorption Units
Used in wastewater treatment and chemical plants for stripping dissolved gases (e.g., oxygen, nitrogen, CO₂) from liquids.
4. Air Pollution Control Systems
Installed in wet scrubbers and absorption reactors to increase gas–liquid interaction and improve pollutant removal efficiency.
5. Heat Recovery and Cooling Towers
Random packing enhances heat and mass transfer performance in cooling towers, gas cooling sections, and heat recovery units.
6. Water and Wastewater Treatment
Used in biological trickling filters, biofilm reactors, and aeration systems to provide effective support surfaces for microbial growth.
7. Chemical and Petrochemical Processing
Ideal for reactors and contactors where improved liquid distribution and reduced pressure drop are required.
