Hot Dip Galvanizing 358 Welded Mesh For Sports Gardens Trellis Gates
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015 |
| Model Number | LJ-02 |
| Minimum Order Quantity | 50 Sets |
| Price | $8.5-10.9 per meter |
| Packaging Details | Wooden Pallet,steel pallet |
| Delivery Time | 7-20days according to the quantity |
| Payment Terms | T/T |
| Supply Ability | 1000 sets per day |
Product Details
| Production: | 358 Welded Mesh | Key Words: | Anti Climbing Fence |
|---|---|---|---|
| Frame Material: | Carbon Steel | Mesh Size: | 12.7mm X 76.2mm |
| Wire Thickness: | 3.5mm | Mesh Opening: | 75×12mm |
| Height: | 3000mm | Length Per Panel: | 2.5m |
| Sample: | Free | Post Shape: | Square |
| Color: | Blue | Finish: | Powder Coated |
| Highlight: | Galvanizing 358 Welded Mesh,358 Welded Mesh For Sports Gardens,Hot Dip 358 mesh panels |
||
Product Description
Hot-Dip Galvanizing 358 Welded Mesh For Sports Gardens Trellis Gates
358 Welded Mesh Description
358 security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 75mm × 12.5mm × 4mm mesh openning. This mesh fencing is for high security applications, though is also often used for lower security applications for peace of mind. The very small apertures mean that it is not possible for any would-be intruder to get a finger or toe hold for climbing, or indeed for getting a cutting tool into.
358 Welded Mesh Advabtages
* Easy to install and maintain.
* Smooth and bright surface.
* Higher strength, high security.
* Corrosion resistance, rust resistance.
* The welded joints are fixed firmly, not easy to be damaged.
* Anti-cut, high strength wire is not easy to be cut.
* Anti-climbing, small mesh openings, no fingers can pass through.
* The welded joints are fixed firmly, not easy to be damaged.
* Anti-cut, high strength wire is not easy to be cut.
* Anti-climbing, small mesh openings, no fingers can pass through.

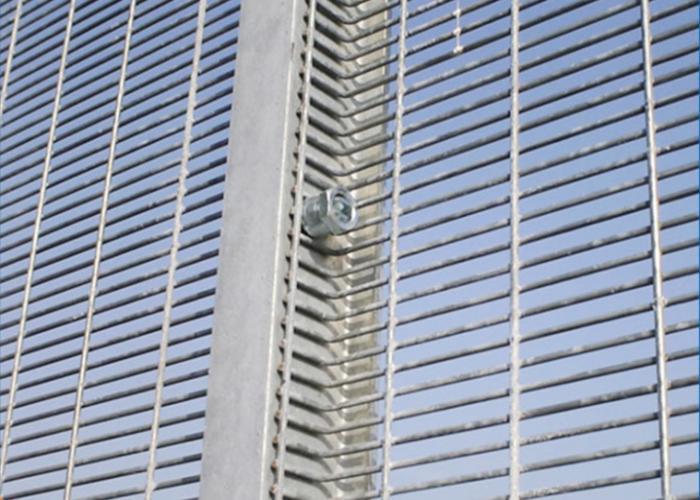

358 Welded Mesh Continuous clamp bar fixing
The most secure method of securing panels to posts. A continuous 40x6mm flat bar clamps the mesh panels together.
M8 fixings pass through the posts and are secured from the inside of the fence by means of anti-vandal and tamper resistant Permacone security fixings.
358 Welded Mesh Posts
Square hollow section posts provide additional strength and safety to the range. Plastic post-tops prevent water ingress. Baseplated, cranked and bespoke post specifications are also available.
358 Welded Mesh Feature
■12.7 x 76.2mm mesh aperture
■Posts are 3mm - Minimum SHS
■Fix-Continuous clamp bar fixing
■Permacone M8 security fixings
■358 isavailable in powder coated or galvfan finishes
■ Is manufactured in the China
358 Welded Mesh Benefits
■Virtually impossible to climb, penetrate or cut. Minimal visual impact
■Posts are the strongest of any comparable system
■ Most secure mesh-fixing method. No threaded inserts in posts which can spin making installation difficult
■Anti-vandal and tamper resistant
■ 358specifications can be tailored to suit most budgets
358 Welded Mesh Specification
|
Panel size (Height×Width)
(mm)
|
Fence Post
(Height×Size×Thick(mm)
|
Clamp Bar
(Height×Width×Thick)(mm)
|
|
2000x2515
|
2700x60x60x2.5
|
2000x60x5
|
|
2400x2515
|
3100x60x60x2.5
|
2400x60x5
|
|
3000x2515
|
3800x80x80x2.5
|
3000x80x6
|
|
3300x2515
|
4200x80x80x2.5
|
3300x80x6
|
|
3600x2515
|
4500x100x100x3
|
3600x100x7
|
|
4200x2515
|
5200x100x100x4
|
4200x100x8
|
|
4500x2515
|
5500x100x100x5
|
4500x100x8
|
|
5200x2515
|
6200x120x120x5
|
5200x100x8
|
358 Welded Mesh Application
Widely used in gardens, factories, roads, highways, public buildings, parks, government buildings, sports fields, industrial and commercial fields.
358 Welded Mesh Package
●We put bubble film between each piece of mesh, put it on an iron pallet, fix it with strapping tape, then, wrap it with plastic film, and reinforce thel corner protector with cardboard.
●Or we secure it with strapping tape and put it in a wooden box.
●When you load or unload them, you just need to operate the forklift to put the packages into the container or your warehouse,very convenient.
