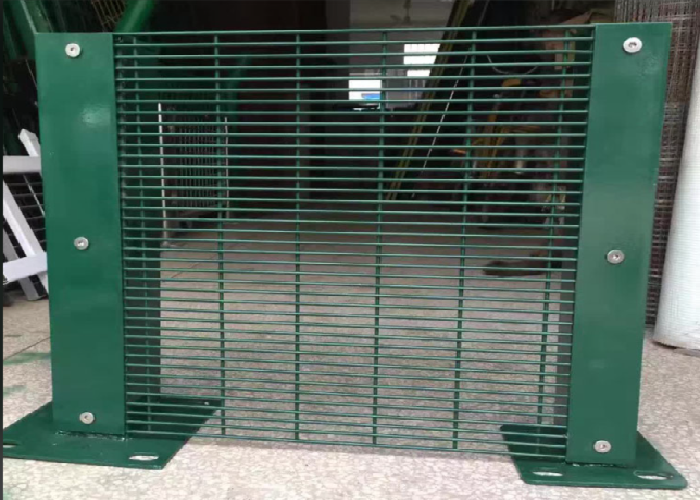

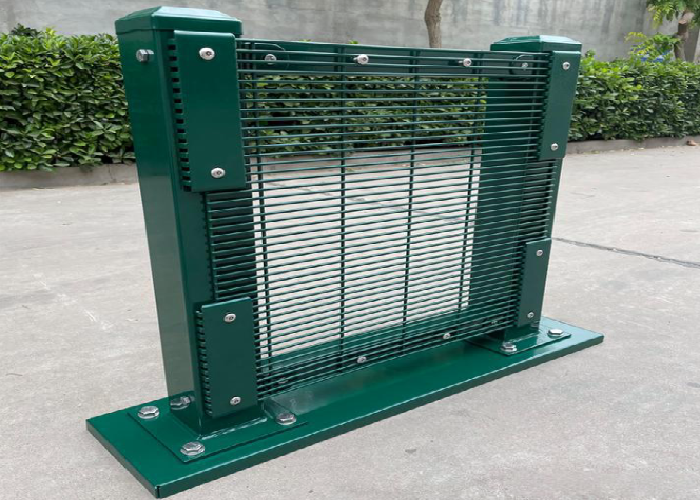

Anti Climb 358 Security Fence Panel Welded 4mm Mesh Powder Coated Finish
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | Luo Jie |
| Certification | ISO9001:2015 |
| Model Number | LJ-02 |
| Minimum Order Quantity | 50 Sets |
| Price | $6.5-10.9 per square meter |
| Packaging Details | steel pallet or as your demand |
| Delivery Time | 7-15 days according to the quantity |
| Payment Terms | T/T,L/C |
| Supply Ability | 1000 sets per day |
Product Details
| Material: | Low Carbon Steel Wire (Galvanized Or Stainless Optional) | Wire Diameter: | 4.0 Mm (typical) |
|---|---|---|---|
| Mesh Size: | 76.2 × 12.7 Mm (3"×0.5") | Panel Size: | 2500 Mm Width × Customizable Height |
| Surface Finish: | Hot-dip Galvanized / Powder-Coated / PVC Coated | Post Type: | Square/Rectangular Posts, In-ground Or Baseplate Options |
| Height Options: | 1.2m / 1.8m / 2.0m / 2.4m / 3.0m (customizable) | Packaging: | Palletized; Includes Clamps, Bolts, Post Caps & Installation Guide |
| Highlight: | security fence panel welded,welded 358 security fence,4mm 358 security fence |
||
Product Description
Anti-Climb 358 Security Fence Panel Welded 4mm Mesh Powder-Coated Finish
Product Information:
The 358 security fence is a tightly welded mesh panel with a typical mesh opening of 76.2 × 12.7 mm (3" × 0.5") and commonly a 4.0 mm wire diameter. Panel widths are typically around 2.5 m with customizable heights. The design delivers clear sightlines for surveillance combined with significant physical delay against intrusion.
Characteristics:
Small mesh openings prevent footholds and fingerholds, greatly reducing climability; robust welded joints and wire diameter improve resistance to cutting.
Multiple surface finishes (hot-dip galvanizing + powder coating / PVC coating) provide corrosion resistance and aesthetic options.
Advantages:
Anti-climb, anti-cut, and clear-view characteristics make 358 panels ideal for high-security environments.
Modular panels and standardized fixings speed installation and simplify maintenance; compatible with concertina/razor wire and other layered security measures.
Application:
Commonly used for airports, prisons, military sites, utility installations, industrial perimeters, schools and gated communities—anywhere a high level of perimeter protection is required.
Technical Data:
| Item | Typical Value |
|---|---|
| Mesh Size | 76.2 × 12.7 mm (3"×0.5") |
| Wire Diameter | 4.0 mm (typ.) |
| Panel Width | 2500 mm |
| Height Options | 1.2m / 1.8m / 2.0m / 2.4m / 3.0m (customizable) |
| Finish | Hot-dip Galvanized / Powder-Coated / PVC Coated |
| Accessories | Posts, clamps, bolts, post caps, installation guide |
Installation & Maintenance:
The 358 fence features modular panels sized to match post centers—post spacing is typically 2.5 m. Installation options include in-ground concrete footings or baseplate anchor fixings; footing depth and anchor specifications should be engineered according to local soil conditions and wind loads. During installation, pre-fit clamps or fixings on posts, set panels plumb, then secure with anti-loosening fasteners; use gaskets or joint fillers at panel-to-post interfaces to prevent water ingress. For maintenance, inspect fastenings, coatings and welds at least annually, remove debris, and promptly touch up any scratches or exposed metal with protective coating; in coastal or highly corrosive environments consider heavier galvanizing or stainless components to extend service life.
