Galvanized Trough Bull Feed Meter Gate Paddock Livestock Fence For Farm
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | LJ |
| Certification | ISO9001:2015,SGS |
| Model Number | lj-07 |
| Minimum Order Quantity | 50 sets |
| Price | $29-85 per meter |
| Packaging Details | steel pallet or as demand |
| Delivery Time | according to the quantity |
| Payment Terms | T/T,L/C |
| Supply Ability | 5000 sets a week |
Product Details
| Product Name: | Livestock Fence | Key Word: | Bull Paddock Fence |
|---|---|---|---|
| Material: | Low Carbon Steel Tube | Height: | 5ft, 6ft, Etc. |
| Width: | 8ft, 9.5ft, 10ft, 12ft, 15ft, 16ft, 20ft, Etc. | Surface Treatment: | Galvanized / Powder Coated |
| Tube Size: | 32mm,42mm,48mm | Tube Thickness: | 14-16 Gauge, Normally 15 Gauge |
| Application: | Cattle, Livestock, Farm, Sheep, Horse | Rail Numbers: | 5 / 6 Rails |
| Tube Type: | Round,Square,Oval | Height Width: | 1.8m X 2.1m, 1.6 X 2.1m, 1.8m X 2.4m And So On |
| Port Of Loading: | Xingang Port,China | Certification: | ISO9001,SGS |
| Highlight: | paddock livestock fence,galvanized livestock fence,galvanized cattle panel fence |
||
Product Description
Galvanized Trough Bull Feed Meter Gate Paddock Livestock Fence For Farm
Description of Livestock Fence
1.Material: Carbon steel tube
2.Corrosion form:hot-dipped galvanized or powder coating
3.Features:It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
4.Main markets:Australia, European countries, Canada, America and Asia countries.

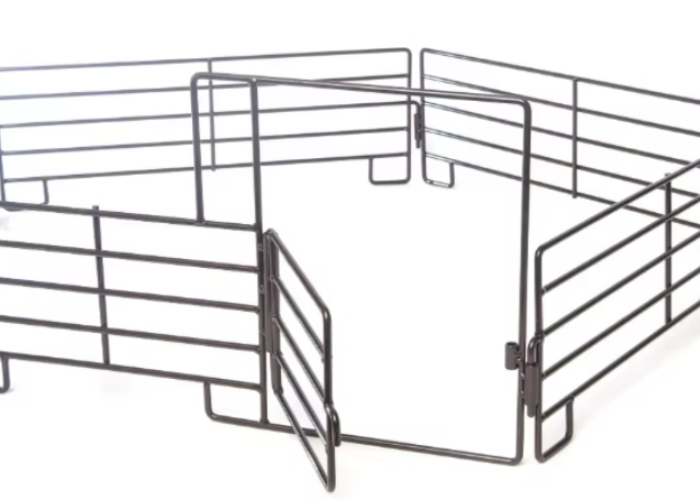

5.Description of cattle corral panels:
-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.
-Complete with Caps & Foot plates.
-Holes for ground pin on one leg of each panel.
-Elongated lug holes in brackets, for ease when connecting.
Specifications of Livestock Fence
|
Type |
Light-duty |
Medium -duty |
Heavy-duty |
|||
|
Rail |
5 Rails 1600mm |
5 Rails 1600mm |
5 Rails 1600mm |
|||
|
Post size |
40x40mm |
40x40mm |
50x50mm |
50x50mm |
89mm OD |
60x60mm RHS |
|
Rail size |
40x40mm |
60x30mm |
50x50mm |
80x40mm |
97x42mm |
115x42mm |
|
Length |
2.1m 2.2m 2.5m 3.2m 4.0m ect. |
|||||
|
Surface treatment |
1.Fully hot dipped galvanized 2.Pre-galvanized pipe then anti-rust spraying. |
|||||
|
Kits |
1. 2 lugs and pins2. cattle panel gate (cattle gate in frame ,double gate ,man gate ,side gate ) |
|||||
Advantages of Livestock Fence
Square vertical pipe/post, welding easy and firm, much durable, and it's more beatiful
- Oval horizontal rails, no sharp edge, can protect sheep and goat from getting hurt, high safety
- Lamb-proof rail spacing
- Middle braces for high strength and heavy duty
- With welded top caps and foot plates, water and dust proof
- Welded "U" and "L" lugs for easy connection. The lugs are welded to bracket all four sides, very durable.
Choosing the right size of livestock farm fence horse corral panels depends on 4 core factors: your horse herd size, intended use, available space, and safety requirements. Here’s a practical, step-by-step guide to make the selection:
1. Start with Standard Panel Sizes (Industry Common Options)
First, familiarize yourself with typical dimensions to narrow down choices:
- Length: 8ft (2.4m), 10ft (3m), 12ft (3.6m) are the most popular (10ft is the all-purpose default for most farms).
- Height: 5ft (1.5m), 6ft (1.8m), 7ft (2.1m) (horses require taller panels than cattle—avoid 4ft or shorter to prevent jumping over).
- Gauge (thickness): 12-14 gauge (heavier 12-gauge for large/active horses; lighter 14-gauge for small hobby farms).
2. Match Size to Intended Use
- Daily Grazing Paddocks: Opt for 10ft or 12ft length panels to minimize gaps between connections. Choose 5-6ft height for adult horses (6ft if you have tall breeds like draft horses or jumpers).
- Temporary Holding Corrals (Feeding/Grooming): 8ft or 10ft length for easy maneuverability and quick setup. 5ft height works for calm, non-aggressive herds.
- Training Arenas/Rodeo Pens: 12ft length for stable, gap-free enclosures. 6-7ft height to contain energetic horses during training or events.
- Sorting/Medical Pens: 8ft length for tight, easy-to-manage spaces. 6ft height to prevent horses from leaning over or escaping during handling.
3. Consider Herd Size and Space Availability
- Small Hobby Farms (1-3 horses): 8ft or 10ft length panels (4-6 panels for a 20x20ft pen). 5ft height balances safety and cost.
- Large Commercial Ranches (10+ horses): 12ft length panels (fewer connections = more stability). 6ft height for herd management, and 7ft if mixing with aggressive breeds.
- Limited Space: 8ft panels for tight layouts (e.g., backyard farms) to maximize usable area without compromising structure.
4. Prioritize Safety and Compatibility
- Ensure height is at least 1ft taller than your tallest horse’s shoulder height to prevent jumping.
- Match panel length to your gate size (e.g., 10ft panels pair with a 10ft gate for seamless installation).
- For mixed livestock (horses + cattle/sheep), stick to 5-6ft height (sufficient for cattle) and 12-gauge thickness to withstand multi-animal use.
Applications of Livestock Fence
Livestock farm fence horse corral panels are versatile workhorses in agricultural and equine management, with applications spanning small hobby farms, large commercial ranches, and equestrian facilities. Primarily, they are used to construct secure, customizable enclosures for horses—including daily grazing paddocks, temporary holding corrals for feeding or grooming, training arenas, and breeding pens. Their modular design allows quick assembly of safe spaces for isolating sick or injured horses, or separating foals from adult herds, ensuring targeted care and reducing stress on animals.
Beyond equine-specific use, these panels integrate seamlessly into broader livestock farm operations, serving as reliable fencing for cattle, sheep, goats, and other livestock. Farmers leverage them for rotational grazing systems, reconfiguring panels to divide pastures and promote forage regeneration while controlling herd movement. In commercial settings, they create efficient sorting pens for branding, veterinary checks, or transport preparation, streamlining workflow during high-volume tasks.
They also excel in temporary or event-related applications: equestrian shows, rodeos, and farm fairs use them to build staging pens, warm-up areas, or spectator barriers, thanks to their portability and quick setup. For remote or seasonal grazing sites, the panels provide a temporary yet sturdy fencing solution that can be disassembled and relocated as needed. Additionally, their robust structure makes them suitable for creating perimeter fencing in mixed-farming operations, protecting livestock from predators while defining property boundaries.
Package of Livestock Fence
1>. fence panel:plastic flim+wood/metal pallet
2>. fence post: every post pack with a plastic bag(the cap is covered well on the post)+metal pallet
3>. accessory: small plastic bag+carton box
4>. we can also do like your details
