High Strength Non Slip Steel Grating For Industrial And Municipal Applications
| Place of Origin | Hebei Province,China |
|---|---|
| Brand Name | Luo Jie |
| Certification | ISO9001 |
| Model Number | LJ-08 |
| Minimum Order Quantity | 50Pcs |
| Price | $5-26/pc |
| Packaging Details | 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements. |
| Delivery Time | 5-10days |
| Payment Terms | L/C,T/T |
| Supply Ability | 5000Pcs Per Month |
Product Details
| Product Name: | High-Strength Anti-Slip Steel Grating For Industrial And Municipal Applications | Key Word: | Anti-Slip Steel Grating, Industrial Platform Grating, Municipal Drain Grating, Heavy-Duty Steel Grid |
|---|---|---|---|
| Material: | Q235 Carbon Steel (Economic); Q345 High-Strength Steel (Heavy-Duty) | Bar Thickness: | 3-8mm |
| Structure: | Serrated Flat Bars (Anti-Slip); Welded Cross Bars; Surface Deburred (No Sharp Edges) | Dimensions: | Length 1-6m (Custom); Width 0.5-1.5m; Mesh Size: 20×100mm To 50×200mm |
| Packaging: | Single Sheet PE Film Wrapping; Wooden Pallet (10-15pcs/Pallet); Moisture-Proof Desiccants | Sample: | Free Sample (Freight Collect) |
| Highlight: | high strength non slip steel grating,industrial non slip steel grating,industrial anti slip steel grating |
||
Product Description
High-Strength Anti-Slip Steel Grating for Industrial and Municipal Applications
Product Description:
High-Strength Anti-Slip Steel Grating solves two core pain points: industrial platform slipping risks and municipal drain grating deformation. The serrated flat bars (anti-slip coefficient ≥0.8) prevent workers from falling even in oily/wet industrial environments, while Q345 steel ensures load capacity up to 80kN/㎡—enough for heavy equipment (e.g., 5-ton forklifts) on factory platforms. For municipal use, it’s customized into drain gratings (mesh size 30×150mm) to block debris and resist road pressure, making it a dual-purpose solution for factories, warehouses, urban roads, and park drains.
Core Characteristics:
Anti-Slip Reliability: Serrated flat bars (tooth depth 1.5mm) + surface texture—100% no slipping in oil/water, compliant with industrial safety standards (EN 13445)
Heavy-Duty Durability: Q345 steel (tensile strength ≥510MPa) + full-welded joints—service life 15+ years (2x longer than ordinary steel gratings)
Easy Installation: Pre-drilled holes on edges + light weight (15-30kg/㎡)—2 workers install 100㎡/day without heavy tools
Typical Application:

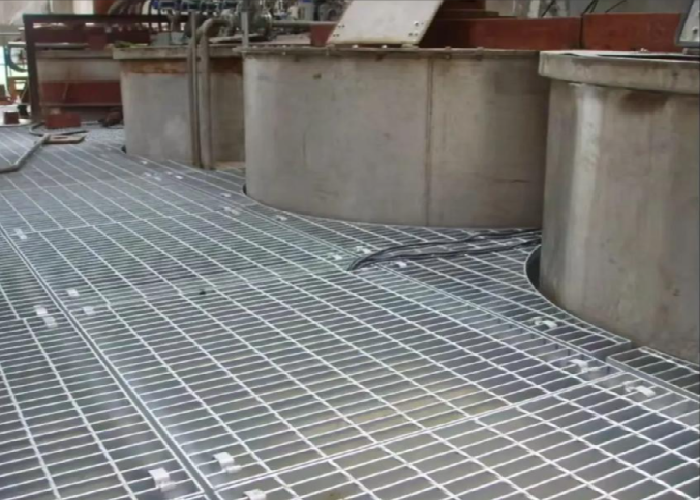

Industrial Scenarios: Factory platforms (5-ton equipment load), warehouse mezzanines (Q345 steel version), oil refinery walkways (anti-oil slipping)
Municipal Scenarios: Urban road drains (30×150mm mesh, blocks leaves), park square gratings (decorative black coating), subway entrance anti-slip steps
Specification:
|
Model
|
Material
|
Bar Size (Width×Thickness)
|
Spacing (Bar×Cross Bar)
|
Load Capacity
|
Surface Treatment
|
Applicable Market
|
|
G253/30/100
|
Q235 Steel
|
25mm×3mm
|
30mm×100mm
|
≥45kN/m²
|
Hot-Dip Galvanization
|
North America, Middle East
|
|
G325/30/100
|
Q345 Steel
|
32mm×5mm
|
30mm×100mm
|
≥50kN/m²
|
Hot-Dip Galvanization
|
Heavy Industry (Mining)
|
|
G203/40/100
|
Q235 Steel
|
20mm×3mm
|
40mm×100mm
|
≥30kN/m²
|
Hot-Dip Galvanization
|
Europe, Southeast Asia
|
|
SS304-325/30/100
|
SS304 Steel
|
32mm×5mm
|
30mm×100mm
|
≥48kN/m²
|
Polishing
|
Chemical Plants
|
FAQ:
Q1: Can it be used for outdoor municipal drains in coastal cities?
A1: Yes—choose Q345 steel with extra galvanization (120μm zinc layer) + moisture-proof packaging, which resists salt spray corrosion for 5+ years.
Q2: What mesh size is best for factory forklift paths?
A2: 30×180mm mesh—balances load capacity (supports 5-ton forklifts) and debris prevention (blocks small parts from falling).
